product series DIN 41612 / IEC 60603-2

ept connectors DE weiAY.png

Highly Diverse and Time Proven: DIN 41612 / IEC 60603-2 Connector

Design:
Male and female connection, straight and angled
Types:
B, C, D, E, F, G, H11, H15, H7/F24, M, Q, R, VME 64x, switch connectors
Number of contacts:
10-160
Pitch:
2.54 mm und 5.08 mm
Operational current:
2.5 mm to 22 mm
Termination length
1.5 A signal connector, 5.6 A & 15 A power connector at 20°C
Packaging:
Tray & Tube
Equipment:
Shroud, Board-Lock, Coding, Flange, high-power contact
Connection technology:
Press-fit technology

Soldering technology

Through-hole reflow technology (THTR)

Faston

Wire-Wrap

Insulation displacement connectors (IDC)
  • DIN connectors with high or low contact density – we offer you flexibility
  • Configure connectors with leading or lagging contacts – fully in line with your requirements
  • DIN connectors in press-fit technology with the matching tool and machine – solution from just one provider
  • Over 50 years of IEC 60603-2  — Wide variety, proven over many years
Connectors that fulfill today’s IEC 60603-2 (previously known as DIN 41612) have been in use for more than 50 years. And with good reason. Developments and standardization have changed and evolved over time, so that new applications are still compatible with tried-and-tested DIN connectors.

In addition to soldering and wire-wrap technology, ept offers you the option of receiving the connector family in the Tcom press® press-fit system developed by ept. The DIN 41612/IEC 60603-2 product series consists of 12 basic types and other supplementary versions with a 2.54-mm or 5.08-mm pitch. The choices range from signal connectors with a current rating of up to 1.5 A to power connectors that can handle up to 5.6 A or even 15 A per pin. The wealth of variants makes it possible to use this family of connectors for a very wide range of applications. Standardization ensures that the connectors are compatible with products from different manufacturers.
Wolfgang Schmid, Product Manager at ept GmbH
DIN 41612 / IEC 60603-2 Leiterplattensteckverbinder

Reset Selection

Übersicht

Overview



 TypePitch
(mm)
max.
no of contacts
Signal or Power
Termination Mating connector
BDIN B Messerleiste.png
DIN B2 Messerleiste.pngDIN B3 Messerleiste.png
B, B/2, B/3
Male
2.5464 / 32 /
20
Signal
1.5 A
Press-fit,
solder, THTR
B, B/2, B/3
Q, Q/2
Female

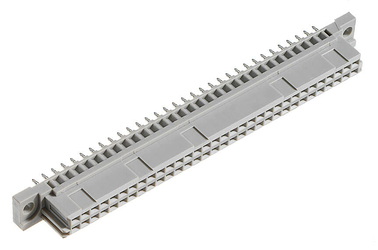

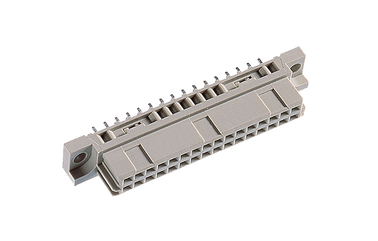

DIN B Federleiste.pngDIN B2 Federleiste.pngDIN B3 Federleiste.pngB, B/2, B/3
Female
2.5464 / 32 /
20
Signal
1.5 A
Press-fit,
solder, THTR
B, B/2, B/3
Q, Q/2
Male
DIN B Schneidklemm.pngB Schneidklemm2.5464Signal
1.5 A
IDCB, Q
Male
C DIN C ML Einpress Foto.jpgDIN C2 ML Einpress Foto.jpgDIN C3 ML Lot Foto.jpgC, C/2, C/3
Male
2.5496 / 48 /
30
Signal
1.5 A
Press-fit,
solder, THTR
C, C/2, C/3
R, R/2, R/3
Female

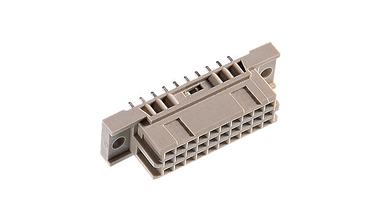

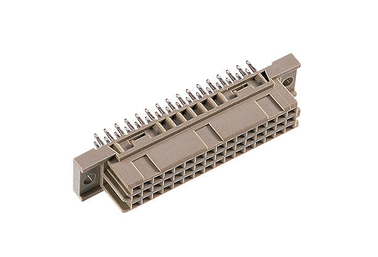

DIN C Federleiste.pngDIN C2 FL Einpress Foto.jpgDIN C3 FL Lot Foto.jpgC, C/2, C/3
Female
2.5496 / 48 /
30
Signal
1.5 A
Press-fit,
solder, THTR
C, C/2, C/3
R, R/2, R/3
Male
DIN C Schneidklemm.pngC IDC2.5496Signal
1.5 A
IDCC, R
Male
MDIN M Messerleiste.pngM Male2.5478Signal
1.5 A
solderM
Female

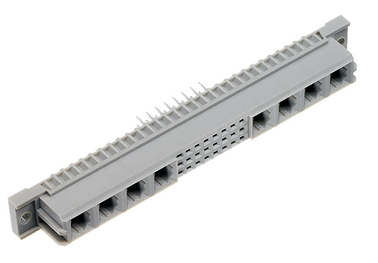

DIN M Federleiste.pngDIN M2 M3 Federleiste.pngM, M/2, M/3
Female
2.5478 / 30 /
12
Signal
1.5 A
Press-fit,
solder
M
Male
QDIN Q ML Foto.jpgDIN Q2 ML Foto.jpgQ, Q/2
Male
2.5464 / 32Signal
1.5 A
solderQ, Q/2
B, B/2
Female
RDIN R Messerleiste.pngDIN R2 Messerleiste.pngDIN R3 Messerleiste.pngR, R/2, R/3
Male
2.5496 / 48 /
30
Signal
1.5 A
Press-fit,
solder, THTR
R, R/2, R/3
C, C/2, C/3
Female
DIN R Federleiste.pngDIN R2 Federleiste.pngDIN R3 Federleiste.pngR, R/2, R/3
Female
2.5496 / 48 /
30
Signal
1.5 A
Press-fit,
solder, THTR
R, R/2, R/3
C, C/2, C/3
Male
D DIN D ML Einpress Foto.jpgD Male5.0832  Power
5.6 A
solderD Female

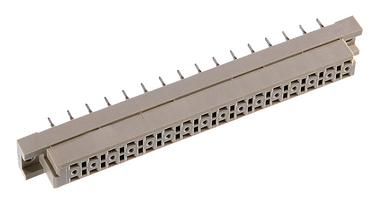

 DIN D FL Einpress Foto.jpgD Female5.0832  Power
5.6 A
Press-fit,
solder
D Male
E DIN E Messerleiste.pngE Male5.0848 Power
5.6 A
solder E Female

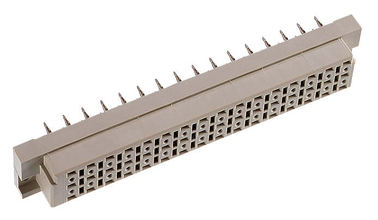

DIN E Federleiste.pngE Female5.0848 Power
5.6 A
Press-fit,
solder
E Male
FDIN F ML Lot Foto.jpg F Male 5.08 x
3.81
48 Power
5.6 A
solder F Female

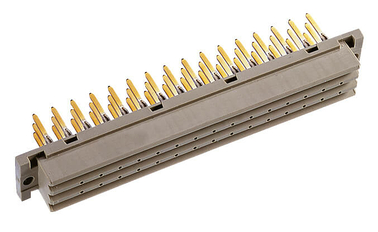

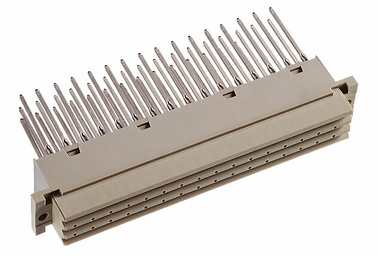

DIN F FL Einpress Foto.jpgDIN F flach FL Einpress Foto.jpgF, F low profile Female 5.08 x
3.81
48 Power
5.6 A
Press-fit,
solder
 F Male
GDIN G Messerleiste.png G Male 5.08 x
3.81
64 Power
5.6 A
solderG Female

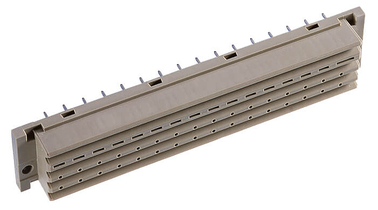

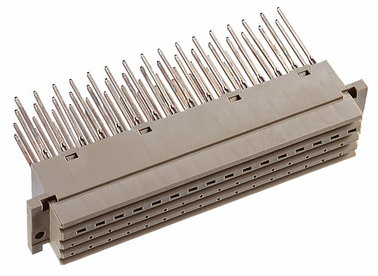

DIN G Federleiste.pngDIN G flach Federleiste.pngG, G low profile Female 5.08 x
3.81
64 Power
5.6 A
Press-fit,
solder
G Male
HDIN H11 ML Foto.jpgH11 Male7.6211Power
15 A
solderH11 Female

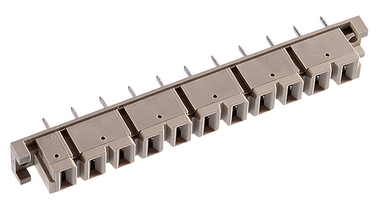

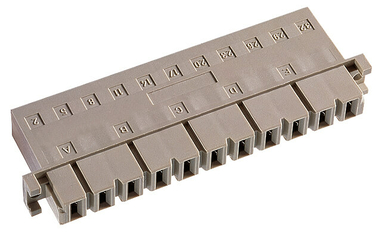

DIN H11 FL Lot Foto.jpgDIN H11 flach FL Lot Foto.jpgH11, H11
low profile Female
7.6211 Power
15 A
 Faston, solderH11 Male
DIN H15 ML Lot Foto.jpgH15 Male5.08 x
6
15 Power
15 A
solderH15 Female

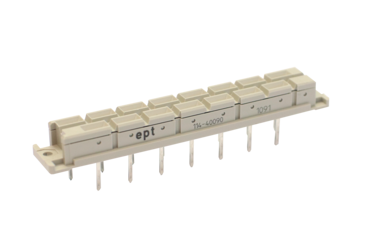

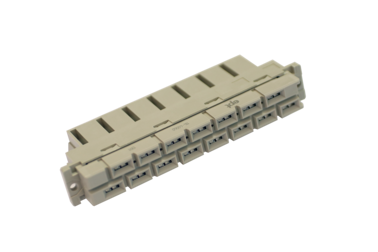

DIN H15 Federleiste.pngDIN H15 flach FL Lot Foto.jpg H15, H15
low profile Female
5.08 x
6
15 Power
15 A
 Faston, solder H15 Male
DIN H7F24 ML Lot Foto.jpgH7/F24
Male
5.08 x
3.81
7+24  Power
15 A
solderH7/F24 Female
DIN H7F24 FL Lot Foto.jpgDIN H7F24 flach FL Lot Foto.jpg H7/F24, H7/
F24 low profile Female
 5.08 x
3.81
7+24  Power
15 A
solder H7/F24
Male
VMExDIN Schalter.pngVME64x
Female
2.54 160 Signal
1.5 A
Press-fit -
SwitchDIN Schalter VME Foto.jpg Switching connector2.54 96 Signal
1.5 A
Press-fitC Male
Overview Features DIN Male Female

Features der DIN-Steckverbinder für Board-to-Board Anwendungen

DIN connectors continue to enjoy widespread usage, in particular in industrial applications. For example, the VME bus, which has been on the market for more than 35 years, relies on DIN connectors. It has managed to secure a very good position in the industrial computer and is also used in new developments. The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications. In addition, the sturdy and reliable design continues to ensure the future of the connectors. Today, applications using DIN connectors are implemented in signal transmission as well as transmission of higher currents – in all areas of industrial electronics, from control technology to motor controls, right through to industrial PCs.DIN Anwendung C ML C FL
Termination TechnologiesPress fit.pngThrough Hole.png
PCB ConnectionsBoard to Board parallel.pngBoard to Board rechtwinklig.pngBoard to Board horizontal.pngCable to Board.png
Features
  • Various termination technologies possible
  • Leading and lagging contacts
  • Pre-centering
  • Variety of termination lengths
  • A range of accessories, such as shrouds, board locks, coding keys
  • Quick lock switch fastener for daisy chaining
  • Board locks and codes provide developers and users with additional safety and a wide range of possible applications.
Applications
  • Backplane daughter card, 19-inch technology (VME)
  • Board-to-board, parallel, or stacked
  • High-power

Press-fit technology Tcom press from ept

In view of the increasing miniaturization of components and higher component density on printed circuit boards, the use of solderless press-fit technology is increasing. Press-fit connections are created by pressing a connector pin into a contacted PCB hole. The contacting facilitates an electrical connection between opposite layers of the circuit board. To do this, a hole is drilled through the board
and copper is applied as the carrier material.

Contacting takes place using a defined and controlled force – an enormous advantage for consistent quality and fast, problem-free processing. What makes this particularly special is that the press-fit pin has a larger diagonal than the diameter of the PCB hole. The flexibility is in the press-in zone.
Press-in tools allow several connectors to be pressed in at the same time. In contrast to soldering, the PCBs are not thermally stressed. A gas-tight, durable, mechanically and electrically conductive connection with low contact resistance is created between the press-fit pin and the hole wall.

Einpresstechnik

Your advantages thanks to Tcom press® press-fit technology

The press-fit technique has many advantages over the soldering technique. There are good reasons as to why it is still considered an innovative and reliable solution in connection technology.

  • Electrical, mechanical, gas-tight, corrosion-proof, and low-resistance connection
  • High retention forces
  • No soldering defects, flux residues, or similar
  • No additional washing necessary
  • No thermal stress on the PCB
  • No thermal stress on the electrical components
  • Can be recycled by simply pressing out
  • Efficient and cost-effective placement process
  • PCB can be assembled on both sides

Leading and Lagging Contacts

The DIN 41612/IEC 60603-2 connector family consists of 12 basic designs with supplementary variants. For DIN connectors types B, C, Q, R, and D, 0.8 mm or 1.0 mm leading male contacts can be loaded into any position in rows a, b, c, d, and e. Leads of 1.3 mm are possible for types F and G.

Why use a leading or lagging contact?
Leading and lagging contacts are employed in electrical engineering to prevent voltage spikes, which can result in overvoltage. The connection is made and broken using these contacts in the first or final step.

Do you need a connector with leading or lagging contacts?
No problem. We can supply you with special assemblies for DIN types B, C, R, D, E, F and G. The leading contact can be inserted at any desired position.

Pre Mating Late Mating EN

FAQ: Questions and answers regarding DIN 41612 / IEC 60603-2

How are DIN connectors processed?

With termination technology, press-fit or soldering technology as well as through-hole technology, a FASTON connection, or insulation displacement connectors (IDC).

What currents are possible using DIN connectors?

The choices range from signal connectors with a current rating of up to 1.5 A to power connectors that can handle up to 5.6 A or even 15 A per pin.

Are the DIN connectors RoHS-compliant?

Yes, all DIN connectors are RoHS-compliant.

What are the offset tolerances for DIN connectors when being plugged?

DIN connectors feature high offset tolerances. The permissible center offset tolerance when connecting a male to a female is 1 mm along both the longitudinal and the transversal axis. The tolerance for angular inclination is 4° longitudinally and 2° transversally.

Are there suitable tools for processing DIN connectors with press-fit system from ept? If so, which ones?

Yes, we can offer you suitable tools that are matched to your press-fit-connector.

Testimonials about the DIN 41612 / IEC 60603-2 Connector

Out of respect for our customers’ wish for discretion, we do not list the sources of the following quotes. However, we guarantee the full authenticity of these testimonials.

The wave soldering step can be omitted by using the THTR version, which makes things much more economical.

Production Planner of Board Production

I was impressed by the wide range of press-fit connectors, especially the angled versions.

Production Planner of Board Production

Our customers must be able to safely adapt to our devices even under harsh conditions. This is why we have been relying on the high quality standard of ept DIN connectors for years.

Quality Manager of Power Electronics
