flexilink Board-to-Board Connections

flexilink jumper Foto

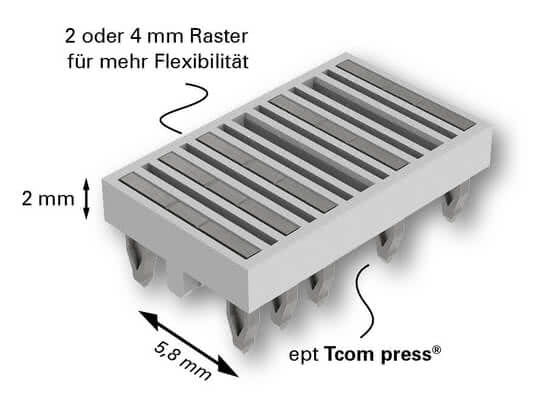

The flexilinkjumper is a non-pluggable board-to-board connector that can be used in a variety of situations. Its space-saving design and high current rating of 11 Ampere per pin make it a winner.

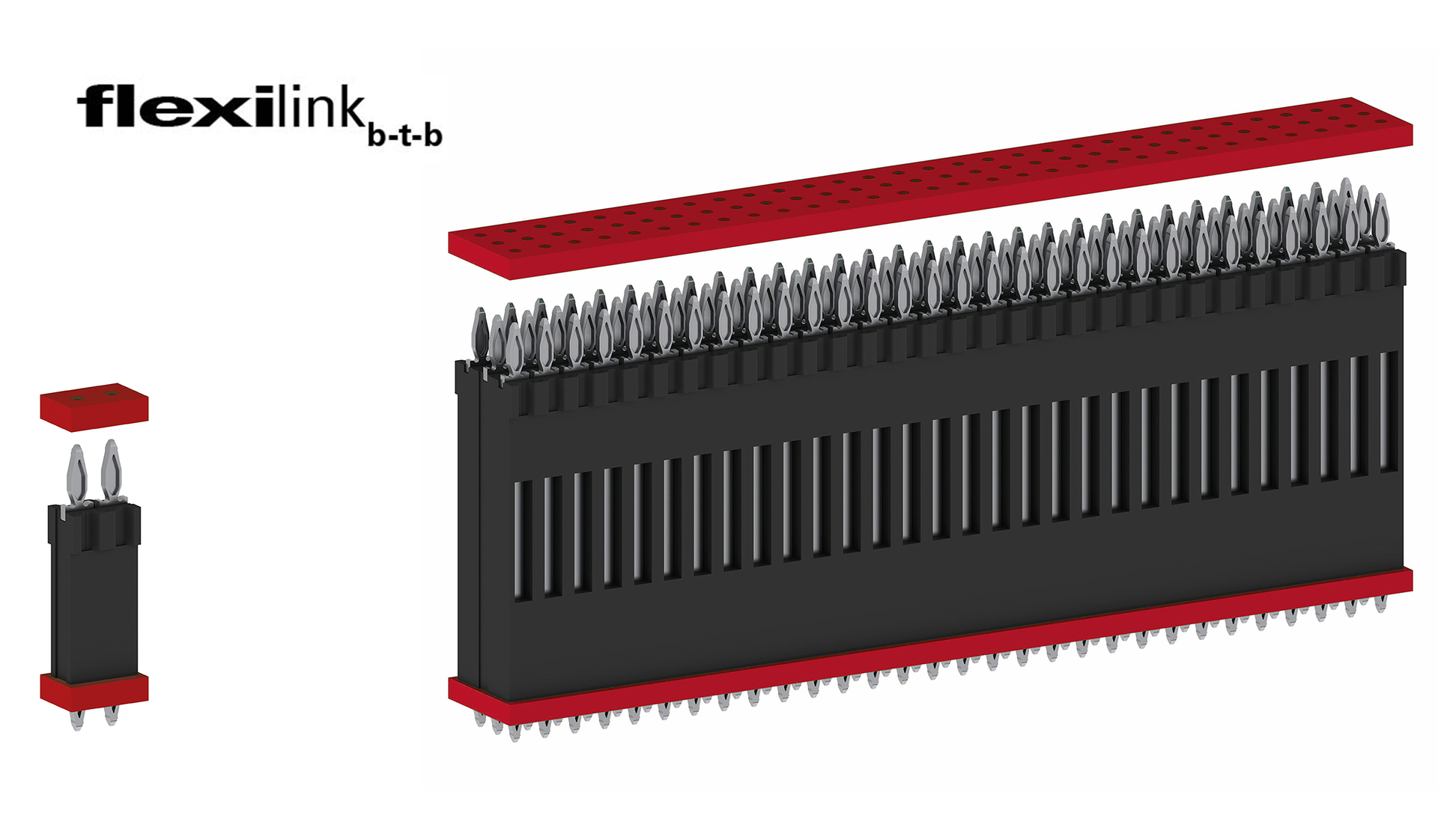

flexilink b t b Homepage 2100x1227px
As with the flexilinkjumper, the flexilinkbtb ensures a secure contact with mechanical loads such as shock and vibration thanks to press-fit technology.
Filter
board-to-board

flexilink b-t-b, 5 mm height Part No. 990-52XNN050-110

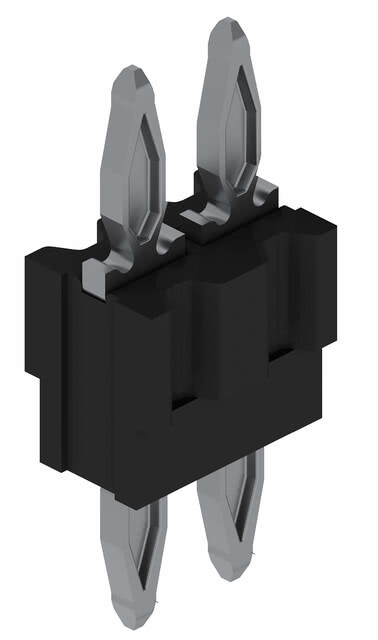

flexilink btb Leiterplattenverbinder 5mm Foto

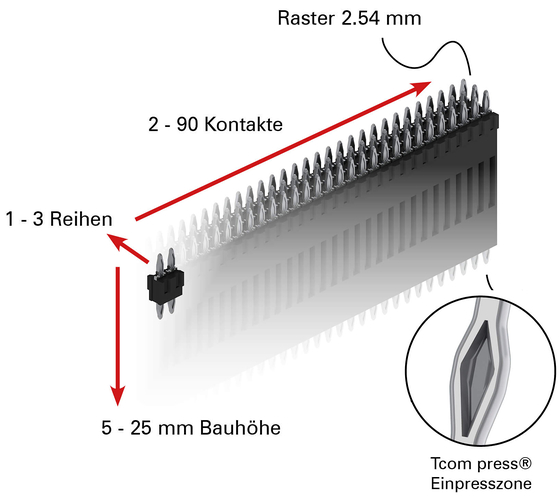

5 mm height, for two-stage press-in operation, 1 - 3 contact rows, space & cost saving, part number key: X = number of rows, NN = contacts per row, For requests please contact our sales department.
Parallel
Press-fit
Power
Rugged
flexilink b-t-b, 5 mm height Part No. 990-52XNN050-110 - Technical data

Basics

No. of Contacts2 - 90 (max. 30 per row)
Termination TechnologyPress-fit
Board-to-Board Distance5 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT
CTI value
IEC 60112
250
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2.54 mm or individually assembled

Electrical

Operational Currentmax. 11 A at 20°C per pin (1x10 pins, height 15 mm)
max. 7 A at 20°C per pin (2x10 pins, height 15 mm)
max. 6 A at 20°C per pin (3x10 pins, height 15 mm)
Contact Resistance<5 mΩ
Clearance and Creepagemin. 0.44 mm / 0.57 mm (within the row)
min. 1.94 / 2.07 mm (between the rows)

Processing

Assemblymanual / semi-automatic / fully automatic

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

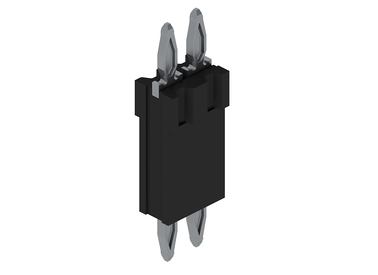

flexilink b-t-b, 10 mm height Part No. 990-52XNN100-110

flexilink btb Leiterplattenverbinder 10mm Foto
10 mm height, for two-stage press-in operation, 1 - 3 contact rows, space & cost saving, part number key: X = number of rows, NN = contacts per row, For requests please contact our sales department.
Parallel
Press-fit
Power
Rugged
flexilink b-t-b, 10 mm height Part No. 990-52XNN100-110 - Technical data

Basics

No. of Contacts2 - 90 (max. 30 per row)
Termination TechnologyPress-fit
Board-to-Board Distance10 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT
CTI value
IEC 60112
250
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2.54 mm or individually assembled

Electrical

Operational Currentmax. 11 A at 20°C per pin (1x10 pins, height 15 mm)
max. 7 A at 20°C per pin (2x10 pins, height 15 mm)
max. 6 A at 20°C per pin (3x10 pins, height 15 mm)
Contact Resistance<5 mΩ
Clearance and Creepagemin. 0.44 mm / 0.57 mm (within the row)
min. 1.94 / 2.07 mm (between the rows)

Processing

Assemblymanual / semi-automatic / fully automatic

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

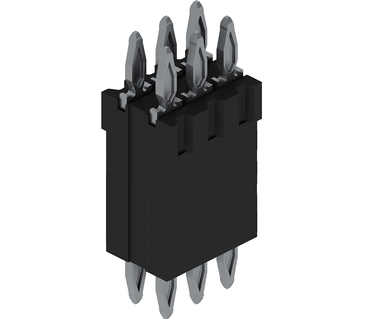

flexilink b-t-b, 15 mm height Part No. 990-52XNN150-110

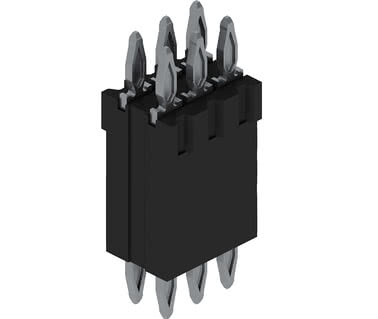

flexilink btb Leiterplattenverbinder 15mm Foto
15 mm height, for two-stage press-in operation, 1 - 3 contact rows, space & cost saving, part number key: X = number of rows, NN = contacts per row, For requests please contact our sales department.
Parallel
Press-fit
Power
Rugged
flexilink b-t-b, 15 mm height Part No. 990-52XNN150-110 - Technical data

Basics

No. of Contacts2 - 90 (max. 30 per row)
Termination TechnologyPress-fit
Board-to-Board Distance15 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT
CTI value
IEC 60112
250
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2.54 mm or individually assembled

Electrical

Operational Currentmax. 11 A at 20°C per pin (1x10 pins, height 15 mm)
max. 7 A at 20°C per pin (2x10 pins, height 15 mm)
max. 6 A at 20°C per pin (3x10 pins, height 15 mm)
Contact Resistance<5 mΩ
Clearance and Creepagemin. 0.44 mm / 0.57 mm (within the row)
min. 1.94 / 2.07 mm (between the rows)

Processing

Assemblymanual / semi-automatic / fully automatic

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

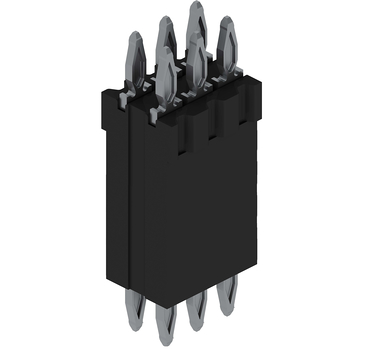

flexilink b-t-b, 20 mm height Part No. 990-52XNN200-110

flexilink btb Leiterplattenverbinder 20mm Foto
20 mm height, for two-stage press-in operation, 1 - 3 contact rows, space & cost saving, part number key: X = number of rows, NN = contacts per row, For requests please contact our sales department.
Parallel
Press-fit
Power
Rugged
flexilink b-t-b, 20 mm height Part No. 990-52XNN200-110 - Technical data

Basics

No. of Contacts2 - 90 (max. 30 per row)
Termination TechnologyPress-fit
Board-to-Board Distance20 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT
CTI value
IEC 60112
250
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2.54 mm or individually assembled

Electrical

Operational Currentmax. 11 A at 20°C per pin (1x10 pins, height 15 mm)
max. 7 A at 20°C per pin (2x10 pins, height 15 mm)
max. 6 A at 20°C per pin (3x10 pins, height 15 mm)
Contact Resistance<5 mΩ
Clearance and Creepagemin. 0.44 mm / 0.57 mm (within the row)
min. 1.94 / 2.07 mm (between the rows)

Processing

Assemblymanual / semi-automatic / fully automatic

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

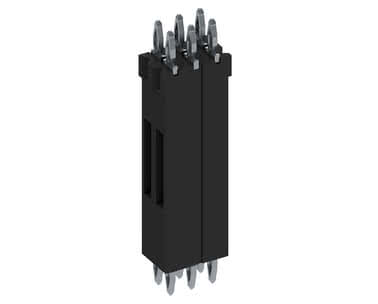

flexilink b-t-b, 25 mm height Part No. 990-52XNN250-110

flexilink btb Leiterplattenverbinder 25mm Foto
25 mm height, for two-stage press-in operation, 1 - 3 contact rows, space & cost saving, part number key: X = number of rows, NN = contacts per row, For requests please contact our sales department.
Parallel
Press-fit
Power
Rugged
flexilink b-t-b, 25 mm height Part No. 990-52XNN250-110 - Technical data

Basics

No. of Contacts2 - 90 (max. 30 per row)
Termination TechnologyPress-fit
Board-to-Board Distance25 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT
CTI value
IEC 60112
250
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2.54 mm or individually assembled

Electrical

Operational Currentmax. 11 A at 20°C per pin (1x10 pins, height 15 mm)
max. 7 A at 20°C per pin (2x10 pins, height 15 mm)
max. 6 A at 20°C per pin (3x10 pins, height 15 mm)
Contact Resistance<5 mΩ
Clearance and Creepagemin. 0.44 mm / 0.57 mm (within the row)
min. 1.94 / 2.07 mm (between the rows)

Processing

Assemblymanual / semi-automatic / fully automatic

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
jumper

flexilink jumper, 2 contacts Part No. 991-500200-11

flexilink jumper Foto
2 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 2 contacts Part No. 991-500200-11 - Technical data

Basics

No. of Contacts2
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 3 contacts Part No. 991-500300-11

flexilink jumper Foto
3 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 3 contacts Part No. 991-500300-11 - Technical data

Basics

No. of Contacts3
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 4 contacts Part No. 991-500400-11

flexilink jumper Foto
4 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 4 contacts Part No. 991-500400-11 - Technical data

Basics

No. of Contacts4
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 5 contacts Part No. 991-500500-11

flexilink jumper Foto
5 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 5 contacts Part No. 991-500500-11 - Technical data

Basics

No. of Contacts5
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 6 contacts Part No. 991-500600-11

flexilink jumper Foto
6 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 6 contacts Part No. 991-500600-11 - Technical data

Basics

No. of Contacts6
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 7 contacts Part No. 991-500700-11

flexilink jumper Foto
7 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 7 contacts Part No. 991-500700-11 - Technical data

Basics

No. of Contacts7
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 8 contacts Part No. 991-500800-11

flexilink jumper Foto
8 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 8 contacts Part No. 991-500800-11 - Technical data

Basics

No. of Contacts8
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 9 contacts Part No. 991-500900-11

flexilink jumper Foto
9 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 9 contacts Part No. 991-500900-11 - Technical data

Basics

No. of Contacts9
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 10 contacts Part No. 991-501000-11

flexilink jumper Foto
10 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 10 contacts Part No. 991-501000-11 - Technical data

Basics

No. of Contacts10
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 11 contacts Part No. 991-501100-11

flexilink jumper Foto
11 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 11 contacts Part No. 991-501100-11 - Technical data

Basics

No. of Contacts11
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 12 contacts Part No. 991-501200-11

flexilink jumper Foto
12 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 12 contacts Part No. 991-501200-11 - Technical data

Basics

No. of Contacts12
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 13 contacts Part No. 991-501300-11

flexilink jumper Foto
13 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 13 contacts Part No. 991-501300-11 - Technical data

Basics

No. of Contacts13
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 14 contacts Part No. 991-501400-11

flexilink jumper Foto
14 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 14 contacts Part No. 991-501400-11 - Technical data

Basics

No. of Contacts14
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe

flexilink jumper, 15 contacts Part No. 991-501500-11

flexilink jumper Foto
15 contacts, operational current 11 A, small footprint design, easy processing without soldering, variable 2 or 4 mm pitch
Horizontal
Press-fit
Power
flexilink jumper, 15 contacts Part No. 991-501500-11 - Technical data

Basics

No. of Contacts15
Termination TechnologyPress-fit
Board-to-Board Distance1 mm
Operating Temperature Range-40°C to +125°C

Material

Insulator MaterialPBT glass filled
Contact MaterialCopper alloy
PlatingSn

Mechanical

Pitch2 mm

Electrical

Operational Current11 A at +20°C per pin (5 contact bridges)
Contact Resistance≤ 5mΩ
Clearance and Creepage1.4 mm
Insulation Resistance≥ 10 GΩ
Test Voltage1500 VDC

Approval / Compliance

UL fileE130314
EnvironmentRoHS compliant
Stock Check
You will be redirected to an external page with the Supplyframe offer. By loading the content you accept the data processing by Supplyframe.
You can view Supplyframe's privacy policy here.

Yes, load content from Supplyframe
Vielen Dank! Wir werden Ihre Anforderungen prüfen und mit Ihnen Kontakt aufnehmen.

Bei Fragen stehen wir Ihnen jederzeit per E-Mail oder Telefon zur Verfügung.

Kein passendes Produkt gefunden - Produkt jetzt anfragen:

Felder mit * sind Pflichtfelder.

PCB Connector with press-fit technology

The rugged flexilink connector with press-fit technology is perfect for a sturdy connection for applications with high switching currents.

The flexilink comes in two variants:

- flexilinkjumper for horizontal PCB connections
- flexilinkb-t-b for parallel PCB connections


flexilinkjumper for horizontal PCB connections:

It impresses with its space-saving design while at the same time boasting a high current rating. A board-to-board distance of 1 mm and a footprint of only 3.8 mm on the circuit board enable maximum use of space and a range of applications. For example, the connector can be used to daisy-chain LED boards. The circuit board connector is a mere 2 mm high.
flexilinkb-t-b for parallel PCB connections:

This connector and its 2.54 mm grid guarantees you a high-quality PCB connection with its press-fit technology. The two-sided connector is a perfect solution for high switching currents because no contact junction limits current carrying capacity. The advantage of this is evident: A reliable mechanical as well as electrical board-to-board connection is created using just a single part. There is no need for any spacers – not only saving on PCB real estate but also reducing costs. The flexilinkb-t-b adapts to your needs: You can choose flexilinkb-t-b for board-to-board distances of 5 to 25 millimeters as well as combine different rows and numbers of pins.

flexilink jumper Features

Jumper beschriftet
The flexilinkjumper is a non-pluggable board-to-board connector that can be used in a variety of situations. Its space-saving design and high current rating of 11 Ampere per pin make it a winner. It has a variable pitch of 2 or 4 millimeters and offers two to 15 contact bridges. This allows you to choose board-to-board distances perfectly suited to your requirements, making it particularly suitable for
applications such as LED strips in building, automation, and automotive electronics. It withstands exceptionally strong mechanical loads such as shock and vibration. No elaborate soldering process is necessary – the flexilinkjumper uses press-fit technology to ensure the easy connection of two or more printed circuit boards.

Features

  • Variable pitch from 2–4 millimeters
  • 2–15 contact bridges
  • Up to 11 Ampere current rating per pin
  • Saves space and reduces costs; replaces spacers
  • Connection created using just a single part
  • Withstands high mechanical loads, shock, and vibration
  • Press-fit technology eliminates the soldering process
  • Customized board-to-board distance as an option
  • Press-fit system: Tcom press

Applications

  • LED in building, automation, and automotive technologies
  • Drive technology
  • Sensors

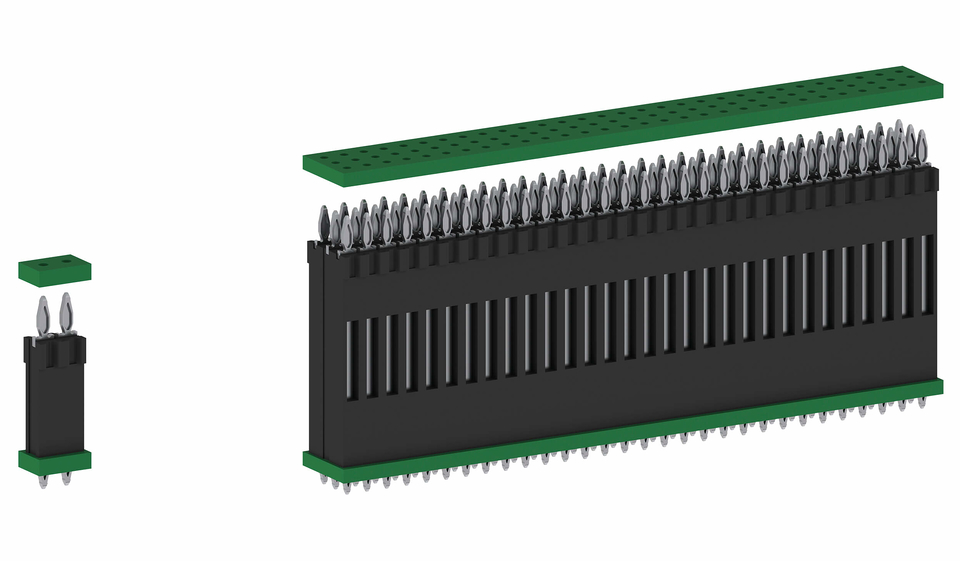

flexilink b-t-b Features

flexilink b t b
As with the flexilinkjumper, the flexilinkbtb ensures a secure contact with mechanical loads such as shock and vibration thanks to press-fit technology. The flexilinkbtb can be customized to your needs: Configure your flexilinkbtb in terms of height as well as number of rows and contacts. It can have one to three contact rows, two to 90 pins, and board-to-board distances between 5 and 25 millimeters. Each pin has a current rating of up to 11 Ampere. This means the flexilinkbtb is particularly suitable for high-current applications and is at its best in applications with thick-copper circuit boards.

Features

  • Up to 11 Ampere current rating per pin
  • 2–90 pins
  • 5–25 millimeters in height
  • 1–3 rows
  • Saves space and reduces costs; replaces spacers
  • Connection created using just a single part
  • High mechanical load, shock, and vibration
  • Press-fit technology eliminates the soldering process
  • Customized board-to-board distance as an option
  • Press-fit system: Tcom press

Applications

  • Machine tools
  • Agricultural technology
  • Automotive
  • Intralogistics
  • Lifting and crane technology
  • Drive technology

Questions & Answers Regarding flexilink Board-to-Board-Connector

Can you also press the flexilink into a thicker copper base?Why is there a minimum purchase volume for the flexilink?
Can you also press the flexilink into a thicker copper base?

Yes, the flexilink can be easily pressed into thick copper circuit boards.

Why is there a minimum purchase volume for the flexilink?

The minimum purchase volumes are due to the high consulting effort involved, the complex machine technology, and the installation of the press.

Testimonials about the flexilink Board-to-Board-Connector

Out of respect for our customers’ wish for discretion, we do not list the sources of the following quotes. However, we guarantee the full authenticity of these testimonials.

We were able to solve our space problems and launch our new development to the market on time with the help of ept’s flexilink.

Industrial Automation Project Manager

We were able to use the flexilink to ensure that there were no contact interruptions even in molded assemblies due to ept’s gas-tight press-fit system.

Head of Development for Sensors

Flexilink allows us to implement the exact board-to-board distances we need.

Hardware Development Team Leader

With the flexilink, we only need one component instead of two to reliably connect PCBs together.

Hardware Development sensors/Data acquisition

We achieved the best results with flexilink in our extreme shock and vibration tests: There was not a single contract interruption in the joints between the flexilink pins and the PCB’s through connection!”

Hardware Development Team Leader
