DIN 41612 PCB connectors
DIN 41612: Overview
Features
- Various connection technologies available
- Leading and trailing contacts available upon request
- Pre-alignment
- Various connection lengths
- Up to 160 contacts per connector
- Connectors with two to five rows available
- Connectors with 2.54 mm or 5.08 mm pitch

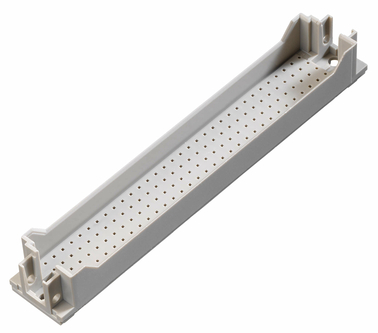

- Extensive range of accessories such as shrouds, Board-Lock, and keying.
- Switch connectors for daisy chaining are
- internationally certified, e.g., according to UL.
- Signal transmission up to 1.5 A;
- power transmission up to 5.6 A or 15 A.
- Retaining clips and keying provide developers and users with added security and a wide range of application possibilities.
Applications
- Backplane daughter card, 19-inch standard (VME),
- board-to-board, parallel or stacked,
- high-current,
- used as a peripheral connector for external interfaces from the wiring side
- over longer distances via ribbon cables
Filter
Straight spring strip
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-40024
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-40024TH
Connector length: 2.5 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-40026
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-40044
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-40074
Connector length: 5.5 mm, Number of poles: 64, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-63024-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-65025-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 102-65026-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40064-01
Connector length: 3.4 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40064-01TH
Connector length: 3.4 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40064-02
Connector length: 4.6 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40064-02TH
Connector length: 4.6 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40064-05
Connector length: 2.5 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40064-05TH
Connector length: 2.5 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-40065-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-63014-02
Connector length: 4.6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-63064-02
Connector length: 4.6 mm, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-65015-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-65016-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-65065-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B Part No. 302-65066-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged

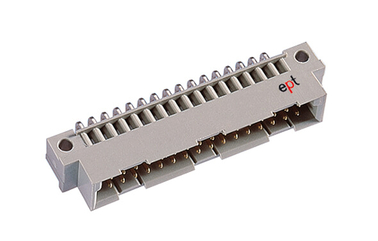

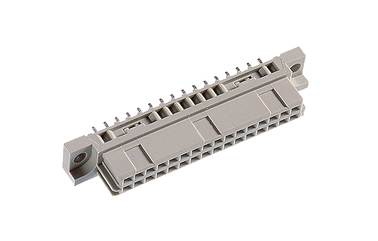

DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-69004-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 16, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-69064-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-79006-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 16, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-79066-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-79106-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 16, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-79166-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90004
Connector length: 2.5 mm, Number of poles: 16, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90004TH
Connector length: 2.5 mm, Number of poles: 16, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90005
Connection length: 4 mm, Number of poles: 16, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90005TH
Connection length: 4 mm, Number of poles: 16, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90006
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 16, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90025
Connector length: 5.5 mm, Number of poles: 16, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90064
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90064TH
Connector length: 2.5 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90065
Connection length: 4 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90065TH
Connection length: 4 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90066
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/2 Part No. 102-90075
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged

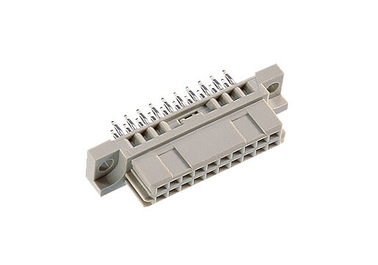

DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-68014-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 20, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-78016-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 20, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-78116-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 20, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Perpendicular
Press-fit
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80004
Connector length: 2.5 mm, Number of poles: 10, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80005
Connection length: 4 mm, Number of poles: 10, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80006
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 10, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80025
Connector length: 5.5 mm, Number of poles: 10, Hand Soldering, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80064
Connector length: 2.5 mm, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80065
Connection length: 4 mm, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80066
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80075
Connector length: 5.5 mm, Number of poles: 20, Hand Soldering, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-40014
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-40016
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-40044
Connector length: 2.5 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-40046
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-40075
Connector length: 5.5/11 mm, Number of poles: 96, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-40115
Connector length: 5.5 mm, Number of poles: 64, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-60014-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-60044-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 48, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-65015-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-65016-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-65045-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 48, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 104-65046-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 48, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40054-01
Connector length: 3.4 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40054-01TH
Connector length: 3.4 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40054-02
Connector length: 4.6 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40054-02TH
Connector length: 4.6 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40054-05
Connector length: 2.5 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40054-05TH
Connector length: 2.5 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40055-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40064-01
Connector length: 3.4 mm, Number of poles: 96, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40064-01TH
Connector length: 3.4 mm, Number of poles: 96, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40064-02
Connector length: 4.6 mm, Number of poles: 96, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40064-02TH
Connector length: 4.6 mm, Number of poles: 96, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40064-05
Connector length: 2.5 mm, Number of poles: 96, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40064-05TH
Connector length: 2.5 mm, Number of poles: 96, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-40065-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 96, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-60054-02
Connector length: 4.6 mm, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-60064-02
Connector length: 4.6 mm, Number of poles: 96, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-65055-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-65056-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-65065-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 96, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C Part No. 304-65066-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 96, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-69004-xx
Connector length: 3.2 mm / 4.6 mm, Number of poles: 16, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-79006-xx
Connection length: 13 mm, with a planting zone of 2, Number of poles: 16, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-79106-xx
Connection length: 17 mm, with a planting zone of 2, Number of poles: 16, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-90004
Connector length: 2.5 mm, Number of poles: 16, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-90006
Connection length: 13 mm, Terminal side tin-plated for wire wrap, Number of poles: 16, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-90025
Connector length: 5.5 mm, Number of poles: 16, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-90035
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 104-90075
Connector length: 5.5/11 mm, Number of poles: 48, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-69014-02
Connector length: 4.6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-69064-02
Connector length: 4.6 mm, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-79016-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-79066-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-79116-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-79166-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90014-01
Connector length: 3.4 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90014-01TH
Connector length: 3.4 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90014-02
Connector length: 4.6 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90014-02TH
Connector length: 4.6 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90014-05
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90014-05TH
Connector length: 2.5 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90016-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90064-01
Connector length: 3.4 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90064-01TH
Connector length: 3.4 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90064-02
Connector length: 4.6 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90064-02TH
Connector length: 4.6 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90064-05
Connector length: 2.5 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90064-05TH
Connector length: 2.5 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/2 Part No. 304-90066-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 104-80035
Connector length: 5.5/11 mm, Number of poles: 20, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 104-80075
Connector length: 5.5/11 mm, Number of poles: 30, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-68004-02
Connector length: 4.6 mm, Number of poles: 20, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-68014-02
Connector length: 4.6 mm, Number of poles: 30, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-78006-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 20, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-78016-03
Connection length: 13 mm, with a planting zone of 2, Number of poles: 30, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-78106-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 20, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-78116-04
Connection length: 17 mm, with a planting zone of 2, Number of poles: 30, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80014-01
Connector length: 3.4 mm, Number of poles: 20, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80014-02
Connector length: 4.6 mm, Number of poles: 20, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80014-05
Connector length: 2.5 mm, Number of poles: 20, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80016-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 20, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80064-01
Connector length: 3.4 mm, Number of poles: 30, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80064-02
Connector length: 4.6 mm, Number of poles: 30, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80064-05
Connector length: 2.5 mm, Number of poles: 30, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80066-03
Connection length: 13 mm, Terminal side tin-plated, Number of poles: 30, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-40064
Connection length: 4 mm, Connection 1 x 1, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-40065
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-40066
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-40075
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-40084
Connector length: 2.5 mm, Connection 0.6 x 0.6, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-60064
Connection length: 6 mm, Connection 1 x 1, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-60065
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, Type D Part No. 106-60084
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40014
Connection length: 4 mm, Connection 1 x 1, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40015
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40024
Connection length: 4 mm, Connection 1 x 1, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40025
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40034
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40036
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40044
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40046
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40064
Connection length: 4 mm, Connection 1 x 1, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40065
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40074
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40076
Connector length: 5.5/11 mm, Number of poles: 48, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-40084
Connector length: 2.5 mm, Connection 0.6 x 0.6, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-60015
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-60025
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-60044
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-60054
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-60065
Connection length: 20 mm, Connection 1 x 1, Terminal side tin-plated for wire wrap, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type E Part No. 108-60084
Connector length: 4.6 mm, Connection 0.6 x 0.6, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40004
Connector length: 4.5 mm, Connection Ø 0.7 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40005
Connector length: 4.5 mm, Connection Ø 0.7 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40014
Connection length: 22 mm, 1x1 mm connection, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40015
Connector length: 4.5 mm, 1x1 mm connection, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40024
Connection length: 22 mm, 1x1 mm connection, Terminal side tin-plated for wire wrap, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40025
Connector length: 4.5 mm, 1x1 mm connection, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40036
Connector length: 5.5 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40046
Connector length: 5.5 mm / 10.9 mm, Number of poles: 32, Hand Soldering, Grade 2
Parallel
Perpendicular
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40064
Connection length: 22 mm, 1x1 mm connection, Terminal side tin-plated for wire wrap, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40065
Connector length: 4.5 mm, 1x1 mm connection, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40076
Connector length: 5.5 mm / 10.9 mm, Number of poles: 48, Hand Soldering, Grade 2
Parallel
Perpendicular
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-40084
Connector length: 4.5 mm, Connection Ø 0.7 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-60014
Connection length: 22 mm, Terminal side tin-plated for wire wrap, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-60015
Connection length: 6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-60024
Connection length: 22 mm, Terminal side tin-plated for wire wrap, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-60025
Connection length: 6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-60064
Connection length: 22 mm, Terminal side tin-plated for wire wrap, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type F Part No. 110-60065
Connection length: 6 mm, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-40504
Connector length: 4.6 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-40505
Connector length: 4.6 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-40584
Connector length: 4.6 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-61004
Connector length: 4.6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-61005
Connector length: 4.6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-61084
Connector length: 4.6 mm, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-66015
Connector length: 12.2 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-66025
Connector length: 12.2 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type F, flat Part No. 110-66065
Connector length: 12.2 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, Type G Part No. 112-40064
Connector length: 4.5 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type G Part No. 112-40065
Connection length: 22 mm, Terminal side tin-plated for wire wrap, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type G Part No. 112-40066
Connector length: 5.5 mm / 10.9 mm, Number of poles: 64, Hand Soldering, Grade 2
Perpendicular
Power
Rugged
DIN 41612 straight spring-loaded connector, Type G Part No. 112-40084
Connector length: 4.5 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, Type G Part No. 112-60064
Connection length: 6 mm, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, Type G Part No. 112-60065
Connection length: 22 mm, Terminal side tin-plated for wire wrap, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type G, flat Part No. 112-61084
Connector length: 4.6 mm, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, type G, flat Part No. 112-66065
Connector length: 12.2 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 straight spring-loaded connector, H11 type Part No. 114-40040
Number of poles: 11, Faston, Grade 1
Perpendicular
Power
Rugged
DIN 41612 straight spring-loaded connector, H11 type, flat Part No. 114-40050
Connection length: 5 mm, Number of poles: 11, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, H15 type Part No. 114-40060
Connection length: 8 mm, Number of poles: 15, Faston 6.3 x 0.8, Grade 1
Perpendicular
Power
Rugged
DIN 41612 straight spring-loaded connector, H15 flat design Part No. 114-40080
Connection length: 4 mm, Number of poles: 15, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 straight spring-loaded connector, H15 flat design Part No. 114-40090
Connector length: 10.2 mm, Terminal side tin-plated for wire wrap, Number of poles: 15, Wire Wrap, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-40112-00
Connector length: 4.6 mm, Number of poles: 6 + 10, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-40122-00
Connector length: 4.6 mm, Total: 78 + 2, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-40142-00
Connector length: 4.6 mm, Total number of poles: 60 + 4, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-40162-00
Connector length: 4.6 mm, Total: 42 + 6, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-40182-00
Connector length: 4.6 mm, Total: 24 + 8, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60012-00
Connector length: 4.6 mm, Number of poles: 6 + 10, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60012-02
Connector length: 4.6 mm, Number of poles: 6 + 10, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60022-00
Connector length: 4.6 mm, Total: 78 + 2, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60022-02
Connector length: 4.6 mm, Total: 78 + 2, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60042-00
Connector length: 4.6 mm, Total number of poles: 60 + 4, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60042-02
Connector length: 4.6 mm, Total number of poles: 60 + 4, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60062-00
Connector length: 4.6 mm, Total: 42 + 6, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60062-02
Connector length: 4.6 mm, Total: 42 + 6, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60082-00
Connector length: 4.6 mm, Total: 24 + 8, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60082-02
Connector length: 4.6 mm, Total: 24 + 8, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60112-00
Connector length: 4.6 mm, Number of poles: 6 + 10, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60122-00
Connector length: 4.6 mm, Total: 78 + 2, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60142-00
Connector length: 4.6 mm, Total number of poles: 60 + 4, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60162-00
Connector length: 4.6 mm, Total: 42 + 6, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type M-series spring-loaded connector Part No. 124-60182-00
Connector length: 4.6 mm, Total: 24 + 8, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, M/3 Part No. 124-68022-00
Connector length: 4.6 mm, Number of poles: 12 + 2, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, M/3 Part No. 124-68022-02
Connector length: 4.6 mm, Number of poles: 12 + 2, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, M/3 Part No. 124-68122-00
Connector length: 4.6 mm, Number of poles: 12 + 2, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight Spring-Loaded Connector, Type M/2 Part No. 124-69022-00
Connector length: 4.6 mm, Total: 30 + 2, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight Spring-Loaded Connector, Type M/2 Part No. 124-69022-02
Connector length: 4.6 mm, Total: 30 + 2, Press-fit technology, Grade 2, Pre-assembled power connectors
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight Spring-Loaded Connector, Type M/2 Part No. 124-69122-00
Connector length: 4.6 mm, Total: 30 + 2, Press-fit technology, Grade 2
Perpendicular
Press-fit
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, M/3 Part No. 124-88122-00
Connector length: 4.6 mm, Number of poles: 12 + 2, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight Spring-Loaded Connector, Type M/2 Part No. 124-99122-00
Connector length: 4.6 mm, Total: 30 + 2, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80004TH
Connector length: 2.5 mm, Number of poles: 10, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80005TH
Connection length: 4 mm, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80064TH
Connector length: 2.5 mm, Number of poles: 20, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 Straight-type spring-loaded connector, Type B/3 Part No. 102-80065TH
Connection length: 4 mm, Number of poles: 20, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80014-01TH
Connector length: 3.4 mm, Number of poles: 20, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80014-02TH
Connector length: 4.6 mm, Number of poles: 20, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80014-05TH
Connector length: 2.5 mm, Number of poles: 20, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80064-01TH
Connector length: 3.4 mm, Number of poles: 30, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80064-02TH
Connector length: 4.6 mm, Number of poles: 30, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, Type C/3 Part No. 304-80064-05TH
Connector length: 2.5 mm, Number of poles: 30, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 straight spring-loaded connector, type G, flat Part No. 112-40584
Connector length: 4.6 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
Straight blade bar
DIN 41612 Straight Connector Block, Type B Part No. 101-40025
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Block, Type B Part No. 101-40065
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type B/2 Part No. 101-90105
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type B/2 Part No. 101-90115
Connection length: 3 mm, Number of poles: 16, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Block, Type B/3 Part No. 101-80105
Connection length: 3 mm, Number of poles: 10, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Rugged
DIN 41612 Straight Connector Block, Type B/3 Part No. 101-80115
Connection length: 3 mm, Number of poles: 20, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C Part No. 103-40015
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C Part No. 103-40025
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C Part No. 103-40035
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C Part No. 103-40065
Connection length: 3 mm, Number of poles: 96, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C/2 Part No. 103-90105
Connection length: 3 mm, Number of poles: 16, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C/2 Part No. 103-90115
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C/2 Part No. 103-90165
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C/3 Part No. 103-80255
Connection length: 3 mm, Number of poles: 20, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type C/3 Part No. 103-80265
Connection length: 3 mm, Number of poles: 30, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type D Part No. 105-40016
Connector length: 3.7 mm, Number of poles: 16, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Strip, Type D Part No. 105-40066
Connector length: 3.7 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Block, Type E Part No. 107-40016
Connector length: 3.7 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Block, Type E Part No. 107-40026
Connector length: 3.7 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Block, Type E Part No. 107-40066
Connector length: 3.7 mm, Number of poles: 48, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Strip, Type F Part No. 109-40015
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Strip, Type F Part No. 109-40025
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Strip, Type F Part No. 109-40065
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2, Flange at a 90° angle to the direction of the connection
Parallel
Through Hole
Power
Rugged
DIN 41612 Straight Connector Block, Type Q Part No. 119-40065
Connector length: 2.5 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Block, Type Q Part No. 119-40074
Connection length: 4 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Block, Type Q/2 Part No. 119-90064
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Block, Type Q/2 Part No. 119-90065
Connection length: 4 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40015
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40015TH
Connector length: 2.5 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40025
Connection length: 4 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40025TH
Connection length: 4 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40026
Connector length: 2.5 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40026TH
Connector length: 2.5 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40035
Connector length: 2.5 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40035TH
Connector length: 2.5 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40036
Connector length: 5.5/11 mm, Number of poles: 64, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40046
Connection length: 4 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40046TH
Connection length: 4 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40054
Connection length: 4 mm, Number of poles: 64, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40054TH
Connection length: 4 mm, Number of poles: 64, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40065
Connector length: 2.5 mm, Number of poles: 96, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40065TH
Connector length: 2.5 mm, Number of poles: 96, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40066
Connector length: 5.5/11 mm, Number of poles: 96, Hand Soldering, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40074
Connection length: 4 mm, Number of poles: 96, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-40074TH
Connection length: 4 mm, Number of poles: 96, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-60014
Connector length: 4.6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-60044
Connector length: 4.6 mm, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-60054
Connector length: 4.6 mm, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-60064
Connector length: 4.6 mm, Number of poles: 96, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65015
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65016
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65045
Connection length: 13 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65046
Connection length: 17 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65055
Connection length: 13 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65056
Connection length: 17 mm, with a planting zone of 2, Number of poles: 64, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65065
Connection length: 13 mm, with a planting zone of 2, Number of poles: 96, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R Part No. 115-65066
Connection length: 17 mm, with a planting zone of 2, Number of poles: 96, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-69054
Connector length: 4.6 mm, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-69064
Connector length: 4.6 mm, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-79055
Connection length: 13 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-79056
Connection length: 17 mm, with a planting zone of 2, Number of poles: 32, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-79065
Connection length: 13 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-79066
Connection length: 17 mm, with a planting zone of 2, Number of poles: 48, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90014
Connector length: 2.5 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90015
Connection length: 4 mm, Number of poles: 32, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90064
Connector length: 2.5 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90065
Connection length: 4 mm, Number of poles: 48, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-68014
Connector length: 4.6 mm, Number of poles: 30, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-78015
Connection length: 13 mm, with a planting zone of 2, Number of poles: 30, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-78016
Connection length: 17 mm, with a planting zone of 2, Number of poles: 30, Press-fit technology, Grade 2
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-80064
Connector length: 2.5 mm, Number of poles: 30, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-80065
Connection length: 4 mm, Number of poles: 30, Soldering Techniques, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90014TH
Connector length: 2.5 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90015TH
Connection length: 4 mm, Number of poles: 32, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90064TH
Connector length: 2.5 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Strip, Type R/2 Part No. 115-90065TH
Connection length: 4 mm, Number of poles: 48, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-80064TH
Connector length: 2.5 mm, Number of poles: 30, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
DIN 41612 Straight Connector Terminal Block, Type R/3 Part No. 115-80065TH
Connection length: 4 mm, Number of poles: 30, THTR, Grade 2
Parallel
Perpendicular
Through Hole
Rugged
90° spring strip
DIN 41612 90° spring-loaded connector, Q-type Part No. 120-40074
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Q/2 type Part No. 120-90064
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40034
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40034TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40044
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40044TH
Connection length: 3 mm, Number of poles: 48, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40054
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40054TH
Connection length: 3 mm, Number of poles: 64, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40074
Connection length: 3 mm, Number of poles: 96, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-40074TH
Connection length: 3 mm, Number of poles: 96, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-60054
Connection length: 3 mm, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° spring-loaded connector, Type R Part No. 116-60074
Connection length: 3 mm, Number of poles: 96, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° spring-loaded connector, R/2 type Part No. 116-69054
Connection length: 3 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° spring-loaded connector, R/2 type Part No. 116-69064
Connection length: 3 mm, Number of poles: 48, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° spring-loaded connector, R/2 type Part No. 116-90054
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, R/2 type Part No. 116-90064
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, R/3 type Part No. 116-68064
Connection length: 3 mm, Number of poles: 30, Press-fit technology, Grade 2
Perpendicular
Press-fit
Rugged
DIN 41612 90° spring-loaded connector, R/3 type Part No. 116-80064
Connection length: 3 mm, Number of poles: 30, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, R/2 type Part No. 116-90054TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, R/2 type Part No. 116-90064TH
Connection length: 3 mm, Number of poles: 48, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° spring-loaded connector, R/3 type Part No. 116-80064TH
Connection length: 3 mm, Number of poles: 30, THTR, Grade 2
Perpendicular
Through Hole
Rugged
90° terminal block
DIN 41612 90° connector strip, Type B Part No. 101-40024
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-40024TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-40044
Connection length: 13 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-40064
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-40064TH
Connection length: 3 mm, Number of poles: 64, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-40074
Connection length: 13 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-60004
Connector length: 3.4 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-60014
Connector length: 3.4 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type B Part No. 101-60064
Connector length: 3.4 mm, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-69004
Connector length: 3.4 mm, Number of poles: 16, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-69014
Connector length: 3.4 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-79016
Connection length: 13 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-90004
Connection length: 3 mm, Number of poles: 16, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-90004TH
Connection length: 3 mm, Number of poles: 16, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-90006
Connection length: 13 mm, Number of poles: 16, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-90014
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-90014TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/2 Part No. 101-90016
Connection length: 13 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-68014
Connector length: 3.4 mm, Number of poles: 20, Press-fit technology, Grade 2
Perpendicular
Press-fit
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-80004
Connection length: 3 mm, Number of poles: 10, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-80006
Connection length: 13 mm, Number of poles: 10, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-80014
Connection length: 3 mm, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-80016
Connection length: 13 mm, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40014
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40014TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40024
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40024TH
Connection length: 3 mm, Number of poles: 48, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40034
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40034TH
Connection length: 3 mm, Number of poles: 64, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40064
Connection length: 3 mm, Number of poles: 96, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40064TH
Connection length: 3 mm, Number of poles: 96, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40144
Connection length: 13 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40154
Connection length: 13 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40174
Connection length: 13 mm, Number of poles: 96, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-40194
Connection length: 13 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-60014
Connector length: 3.4 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-60044
Connector length: 3.4 mm, Number of poles: 48, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-60054
Connector length: 3.4 mm, Number of poles: 64, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C Part No. 103-60064
Connector length: 3.4 mm, Number of poles: 96, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-69004
Connector length: 3.4 mm, Number of poles: 16, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-69014
Connector length: 3.4 mm, Number of poles: 32, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-69064
Connector length: 3.4 mm, Number of poles: 48, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90004
Connection length: 3 mm, Number of poles: 16, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90004TH
Connection length: 3 mm, Number of poles: 16, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90006
Connection length: 13 mm, Number of poles: 16, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90014
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90014TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90016
Connection length: 13 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90064
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90064TH
Connection length: 3 mm, Number of poles: 48, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/2 Part No. 103-90066
Connection length: 13 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-68004
Connector length: 3.4 mm, Number of poles: 20, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-68014
Connector length: 3.4 mm, Number of poles: 30, Press-fit technology, Grade 2
Perpendicular
Horizontal
Press-fit
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-80004
Connection length: 3 mm, Number of poles: 30, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-80006
Connection length: 13 mm, Number of poles: 30, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-80014
Connection length: 3 mm, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-80016
Connection length: 13 mm, Number of poles: 20, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type D Part No. 105-40014
Connection length: 3 mm, Number of poles: 16, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type D Part No. 105-40064
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type E Part No. 107-40014
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type E Part No. 107-40015
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type E Part No. 107-40024
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type E Part No. 107-40025
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type E Part No. 107-40064
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type E Part No. 107-40065
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type F Part No. 109-40014
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type F Part No. 109-40024
Connection length: 3 mm, Number of poles: 32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type F Part No. 109-40064
Connection length: 3 mm, Number of poles: 48, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type G Part No. 111-40064
Connection length: 3 mm, Number of poles: 64, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type G Part No. 111-40164
Connection length: 3 mm, Number of poles: 64, Premature contact at position Z2, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type G Part No. 111-40264
Connection length: 3 mm, Number of poles: 64, Premature contact at positions Z2 and Z32, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, H11 type Part No. 113-40010
Connector length: 3.5 mm, Number of poles: 11, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, H11 type Part No. 113-40015
Connector length: 3.5 mm, Number of poles: 10+1, Premature contact at position 32, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, H11 type Part No. 113-40020
Connector length: 3.5 mm, Number of seats: 9+2, Premature contact at positions 2 and 32, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, H15 type Part No. 113-40060
Connection length: 3 mm, Number of poles: 15, Premature contact at position Z32, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, H15 type Part No. 113-40061
Connection length: 3 mm, Number of poles: 15, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, H15 type Part No. 113-40160
Connection length: 3 mm, Number of poles: 15, Premature contact at positions Z4 and Z32, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, type H7/F24 Part No. 117-40164
Connector length: 3.1 mm, Number of poles: 7 + 24, Premature contact at position Z32, Soldering Techniques, Grade 1
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type M Part No. 123-40121-00
Connection length: 3 mm, Total: 78 + 2, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type M Part No. 123-40141-00
Connection length: 3 mm, Total number of poles: 60 + 4, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type M Part No. 123-40161-00
Connection length: 3 mm, Total: 42 + 6, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type M Part No. 123-40181-00
Connection length: 3 mm, Total: 24 + 8, Soldering Techniques, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-80004TH
Connection length: 3 mm, Number of poles: 10, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type B/3 Part No. 101-80014TH
Connection length: 3 mm, Number of poles: 20, THTR, Grade 2
Perpendicular
Horizontal
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-80004TH
Connection length: 3 mm, Number of poles: 30, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type C/3 Part No. 103-80014TH
Connection length: 3 mm, Number of poles: 20, THTR, Grade 2
Perpendicular
Through Hole
Rugged
DIN 41612 90° connector strip, Type F Part No. 109-40014TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type F Part No. 109-40024TH
Connection length: 3 mm, Number of poles: 32, THTR, Grade 2
Perpendicular
Through Hole
Power
Rugged
DIN 41612 90° connector strip, Type F Part No. 109-40064TH
Connection length: 3 mm, Number of poles: 48, THTR, Grade 2
Perpendicular
Through Hole
Power
Rugged
Switch connectors
DIN 41612 Switch Connectors Part No. 104-60464-xx
Switch contacts at positions a21–a22, b4–b5, b6–b7, b8–b9, b10–b11 for VME, Number of poles: 96, For LP 1.5 to 2.0 mm: xx = 01 (connection length 3.2 mm)_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03 (connection length 4.6 mm), Press-fit technology, Grade 2, Connector length: 3.2 mm / 4.6 mm
Parallel
Perpendicular
Press-fit
Rugged
DIN 41612 Switch Connectors Part No. 104-65465-xx
Switch contacts at positions a21–a22, b4–b5, b6–b7, b8–b9, b10–b11 for VME, Number of poles: 96, For LP 1.5 to 2.0 mm: xx = 01_For LP 2.0 to 2.8 mm: xx = 02 (upon request)_For LP > 2.8 mm: xx = 03, Press-fit technology, Grade 2, Connection length 13 mm_ with a plug-in zone in grade 2
Parallel
Perpendicular
Press-fit
Rugged
VME 64x
DIN 41612 VME 64x header Part No. 306-60067-12
Connector length: 4.6 mm, Number of poles: 160, Press-fit technology, Grade 1, DIN flange
Perpendicular
Press-fit
Rugged
DIN 41612 VME 64x header Part No. 306-61067-12
Connector length: 4.6 mm, Number of poles: 160, Press-fit technology, Grade 1, without a flange
Perpendicular
Press-fit
Rugged
DIN 41612 VME 64x header Part No. 306-62067-12
Connector length: 4.6 mm, Number of poles: 160, Press-fit technology, Grade 1, ANSI flange
Perpendicular
Press-fit
Rugged
DIN 41612 VME 64x header Part No. 306-65069-14
Connection length: 17 mm, with a planting zone of 1, Number of poles: 160, Press-fit technology, Grade 1, DIN flange
Perpendicular
Press-fit
Rugged
DIN 41612 VME 64x header Part No. 306-66069-14
Connection length: 17 mm, with a planting zone of 1, Number of poles: 160, Press-fit technology, Grade 1, without a flange
Perpendicular
Press-fit
Rugged
DIN 41612 VME 64x header Part No. 306-67069-14
Connection length: 17 mm, with a planting zone of 1, Number of poles: 160, Press-fit technology, Grade 1, ANSI flange
Perpendicular
Press-fit
Rugged
Accessories
DIN 41612 Coding, Types B and C Part No. 104-19003
for types B and C, prevents incorrect insertion of assemblies, 1 piece equals 4 wedges
DIN 41612 Shroud C/R Part No. 115-15301
for PCB thickness 2.4 mm, for post length 17 mm, C/R
Perpendicular
DIN 41612 Shroud C/R Part No. 115-15302
for PCB thickness 3.2 mm, for post length 17 mm, C/R
Perpendicular
DIN 41612 Shroud C/R Part No. 115-15401
for PCB thickness 2.4 mm, for post length 13 mm, C/R
Perpendicular
DIN 41612 Shroud C/R Part No. 115-15402
for PCB thickness 3.2 mm, for post length 13 mm, C/R
Perpendicular
DIN 41612 shroud is stiff Part No. 115-15405
for PCB thickness 3.2 mm, for post length 13 mm, C/R is stiff
Perpendicular
DIN 41612 Shroud, stiff-running, without flange Part No. 115-15408
for PCB thickness 3.2 mm, for post length 13 mm, C/R stiff, without flange
Perpendicular
DIN 41612 Shroud C/R with Nut Part No. 115-15701
for PCB thickness 3.2 mm, for post length 13 mm, C/R with nut
Perpendicular
DIN 41612 Shroud C/R with Nut Part No. 115-15702
for PCB thickness 3.2 mm, for post length 17 mm, C/R with nut
Perpendicular
DIN 41612 Shroud VME Part No. 315-15401
for PCB thickness 3.4 mm, Post length: 17 mm, x = 6 mm
Perpendicular
DIN 41612 Shroud VME Part No. 315-15402
for PCB thickness 4.6 mm, Post length: 17 mm, x = 4.8 mm
Perpendicular
DIN 41612 Coding for Types H11 and H15 Part No. 114-30000
Plastic tab for coding
Other number of contacts? Other stacking heights? alternative plating? Individual assembly? Lagging contacts?
DIN 41612 PCB Connectors – The EPT Quality Promise
Personal and Tailored
Short communication channels, quick response times, and the same experienced contacts year after year ensure high-quality information as well as time and cost savings.
Of course, we at ept would be delighted to welcome you to one of our facilities at any time!
Short communication channels, quick response times, and the same experienced contacts year after year ensure high-quality information as well as time and cost savings.
Of course, we at ept would be delighted to welcome you to one of our facilities at any time!
Reliable and fast
: ept combines long-standing reliability and stability with a high degree of flexibility, thanks to its extensive independence from suppliers and its in-house tooling department. For you, this means a shorter time to market, quick and clear answers to your questions, and the ability to independently set and manage your own priorities.
: ept combines long-standing reliability and stability with a high degree of flexibility, thanks to its extensive independence from suppliers and its in-house tooling department. For you, this means a shorter time to market, quick and clear answers to your questions, and the ability to independently set and manage your own priorities.
Outstanding Overall Quality:
The lowest defect rate in the industry and high delivery reliability ensure a low risk of failure and help you avoid costly production downtime. This claim is supported by a functioning quality and environmental management system certified to ISO 9001, ISO 14001, and TS 16949. In-house
manufacturing using our own tooling, along with our internal electroplating facilities, ensure high product quality and continuous, reliable testing.
The lowest defect rate in the industry and high delivery reliability ensure a low risk of failure and help you avoid costly production downtime. This claim is supported by a functioning quality and environmental management system certified to ISO 9001, ISO 14001, and TS 16949. In-house
manufacturing using our own tooling, along with our internal electroplating facilities, ensure high product quality and continuous, reliable testing.
Our PCB connectors: ✓ reliable, ✓ durable, ✓ available in many variants
DIN 41612 printed circuit board connectors are high-quality industrial connectors that have been tried and tested countless times and have been in use for over 50 years.
Rugged: DIN
41612 board-to-board connectors can withstand even harsh environmental conditions, such as shock, vibration, corrosive gases, and much more. Our specialized contact technologies ensure reliable performance and high tolerance during contact and mating. You can choose from a variety of assembly methods, including press-fit, soldering, hand soldering, wire wrap, Faston, cut-to-fit for ribbon cables, or THRT.
41612 board-to-board connectors can withstand even harsh environmental conditions, such as shock, vibration, corrosive gases, and much more. Our specialized contact technologies ensure reliable performance and high tolerance during contact and mating. You can choose from a variety of assembly methods, including press-fit, soldering, hand soldering, wire wrap, Faston, cut-to-fit for ribbon cables, or THRT.
Reliable:
Our PCB connectors featuring Tcom press® insertion technology have the lowest field failure rate available on the market. Combined with high delivery reliability, we guarantee a low risk of failure and help you avoid costly production downtime. We will coordinate delivery dates for shipments directly from us with you. Should delivery delays occur due to external events, we will inform you as soon as possible and arrange an alternative delivery date. For orders placed with our partners, please contact the partner directly.
Our PCB connectors featuring Tcom press® insertion technology have the lowest field failure rate available on the market. Combined with high delivery reliability, we guarantee a low risk of failure and help you avoid costly production downtime. We will coordinate delivery dates for shipments directly from us with you. Should delivery delays occur due to external events, we will inform you as soon as possible and arrange an alternative delivery date. For orders placed with our partners, please contact the partner directly.
Wide Range of Variants With 12 basic
designs and 25 variants, we offer virtually the entire range of DIN 41612 industrial connectors. Whether you require a female header, male header, switch connector, VME64x, or insulation-displacement connector, our DIN 41612 PCB connectors and board connectors deliver high versatility and reliability. If you require other DIN 41612 PCB connectors, we can provide additional variants quickly upon request.
designs and 25 variants, we offer virtually the entire range of DIN 41612 industrial connectors. Whether you require a female header, male header, switch connector, VME64x, or insulation-displacement connector, our DIN 41612 PCB connectors and board connectors deliver high versatility and reliability. If you require other DIN 41612 PCB connectors, we can provide additional variants quickly upon request.
Available
We are largely independent of suppliers. Our in-house tooling department enables us to offer long-term reliability and stability combined with a high degree of flexibility. This means you benefit from a faster time to market. Our service team will answer your questions quickly and reliably.
We are largely independent of suppliers. Our in-house tooling department enables us to offer long-term reliability and stability combined with a high degree of flexibility. This means you benefit from a faster time to market. Our service team will answer your questions quickly and reliably.
Made in the EU
Our in-house manufacturing using our own tooling, along with our internal electroplating facilities, ensures high product quality and continuous, reliable testing. Our DIN 41612 industrial connectors are manufactured in Germany and the Czech Republic.
Our in-house manufacturing using our own tooling, along with our internal electroplating facilities, ensures high product quality and continuous, reliable testing. Our DIN 41612 industrial connectors are manufactured in Germany and the Czech Republic.
Certified
EPT is certified to ISO 9001, ISO 14001, and TS 16949. You can find our certifications, approvals, and test reports for the U.S. and Canada, as well as our RoHS, REACH, POP, recycling, and conflict minerals questionnaires here.
EPT is certified to ISO 9001, ISO 14001, and TS 16949. You can find our certifications, approvals, and test reports for the U.S. and Canada, as well as our RoHS, REACH, POP, recycling, and conflict minerals questionnaires here.
Features of the DIN 41612 connector for board-to-board applications
The DIN 41612 connector remains widely used, particularly as an industrial connector. For example, the VME bus, which has been available on the market for over 35 years, is based on DIN connectors. This has enabled it to secure a strong position in the industrial PC sector, and it continues to be used in new developments. The wide variety of different designs and connection technologies (insertion, dip soldering, hand soldering, wire wrapping, crimping, and THR) of DIN connectors cover a broad range of applications. Furthermore, the robust and reliable construction ensures that these PCB connectors remain viable for the future. Today, DIN 41612 connectors are used in applications ranging from signal transmission to the transmission of higher currents. This versatility covers all areas of industrial electronics, including control technology, motor control, and industrial PCs.
Further information on DIN 41612 PCB connectors:
Further information on DIN 41612 PCB connectors:
DIN 41612 ProductsDIN 41612 PCB Connectors – The EPT Quality PromiseOur PCB connectors: ✓ reliable, ✓ durable, ✓ available in many variantsFeatures of the DIN 41612 connector for board-to-board applicationsPress-fit technology Tcom pressDesignsDeveloper's perspectiveFAQTestimonials
Details at a Glance
Details at a Glance
Tcom press insertion technology from ept
Given the increasing miniaturization of assemblies and higher component density on printed circuit boards, solderless press-fit technology is being used more and more frequently. Press-fit connections are created by pressing a connector pin into a plated-through hole in the printed circuit board. Through-hole plating enables an electrical connection between opposing layers of the PCB. To achieve this, a hole is drilled through the PCB and copper is applied as the carrier material.
Contact is established using a defined and controlled force—a significant advantage for consistent quality and fast, trouble-free processing. What makes this method unique is that the press-fit pin has a larger diagonal dimension than the hole diameter of the PCB. The flexibility lies in the insertion zone.
Insertion tools allow multiple connectors to be inserted simultaneously. Unlike soldering, the PCBs are not subjected to thermal stress during this process. A gas-tight, durable, mechanically and electrically conductive connection with low contact resistance is formed between the insertion pin and the hole wall.
Contact is established using a defined and controlled force—a significant advantage for consistent quality and fast, trouble-free processing. What makes this method unique is that the press-fit pin has a larger diagonal dimension than the hole diameter of the PCB. The flexibility lies in the insertion zone.
Insertion tools allow multiple connectors to be inserted simultaneously. Unlike soldering, the PCBs are not subjected to thermal stress during this process. A gas-tight, durable, mechanically and electrically conductive connection with low contact resistance is formed between the insertion pin and the hole wall.
The benefits of the DIN 41612 connector thanks to Tcom press® press-fit technology
- Electrical, mechanical, gas-tight, corrosion-resistant, and low-resistance connection
- High holding forces
- No soldering defects, flux residues, or similar issues
- No additional cleaning required
- No thermal stress on the Euro board
- No thermal stress on electronic components
- Recycling possible by simply
- pressing out components More efficient and cost-effective assembly process
- Double-sided assembly of the PCB possible
Leading and trailing contact on the DIN 41612 connector
The DIN 41612/IEC 60603-2 connector family consists of 12 basic configurations with supplementary variants. For DIN connectors of configurations B, C, R, D, and E, blade contacts that protrude by 0.8 mm or 1.0 mm can be used in any position of rows a, b, c, d, and e. For types F and G, lead-in distances of 1.3 mm are possible.
Why use a lead-in or lead-out contact?
Lead-in and lead-out contacts are used in electrical engineering to prevent voltage spikes and thus overvoltage. With these contacts, the connection is established first or last and also broken first or last.
If
you require a connector with leading or trailing contacts, we provide custom configurations for DIN types B, C, R, D, E, F, and G, allowing the leading contact to be positioned at any required location.
Contact us »
Why use a lead-in or lead-out contact?
Lead-in and lead-out contacts are used in electrical engineering to prevent voltage spikes and thus overvoltage. With these contacts, the connection is established first or last and also broken first or last.
If
you require a connector with leading or trailing contacts, we provide custom configurations for DIN types B, C, R, D, E, F, and G, allowing the leading contact to be positioned at any required location.
Contact us »
DIN 14162 PCB Connectors - Types
Signal connectors with a pitch of 2.54 mm:
DIN 41612 Type B, Q + DIN 41612 Type C, R
The two-row B series and the three-row DIN 41612 Type C consist of an angled blade strip and a straight spring/socket strip. If straight blade strips and angled spring strips are required, the two-row Q series and the three-row R series are available.
All 4 series are available in half- and third-width versions. Connection options include press-fit, wave soldering, and THTR.
Since the B and Q, as well as the C and R, configurations can be combined, it is possible to connect PCBs at a 90° angle, in parallel, or horizontally.
DIN 41612 Connectors - Type B + Q:
- Type B: angled blade connector, straight spring
connector - Type Q: straight blade connector, angled spring connector
- 64 contacts
- Length: 95 mm, Width: 8.6 mm
DIN 41612 Connectors - Type B/2 + Q/2:
- Type B: angled blade strip, straight spring
strip - Type Q: straight blade strip, angled spring
strip - 32
contacts - Length: 55 mm, width: 8.6 mm
DIN 41612 connector - Type B/3 + Q/3:
- Type B: angled blade strip, straight spring
strip - Type Q: angled blade strip, straight spring
strip - 20
contacts - Length: 39 mm, width: 8.6 mm
DIN 41612 connector - Type C + R:
- Type C: angled blade strip, straight spring
strip - Type R: straight blade strip, angled spring strip
- 96 contacts
- Length: 95 mm, width: 11 mm
DIN 41612 connector - Type C/2 + R/2:
- Type C: angled blade strip, straight spring
strip - Type R: straight blade strip, angled spring
strip - 48
contacts - Length: 55 mm, Width: 11 mm
DIN 41612 connector - Type C/3 + R/3:
- Type C: angled blade connector, straight spring
connector - Type R: angled blade connector, straight spring
connector -
30 contacts - Length: 39 mm, width: 11 mm
With all of the above-mentioned types, operating currents of up to 1.6 A can be transmitted at 20 °C.
DIN signal connectors are frequently used in the IT/computing sector to connect plug-in cards to bus boards.
All 4 series are available in half- and third-width versions. Connection options include press-fit, wave soldering, and THTR.
Since the B and Q, as well as the C and R, configurations can be combined, it is possible to connect PCBs at a 90° angle, in parallel, or horizontally.
DIN 41612 Connectors - Type B + Q:
- Type B: angled blade connector, straight spring
connector - Type Q: straight blade connector, angled spring connector
- 64 contacts
- Length: 95 mm, Width: 8.6 mm
DIN 41612 Connectors - Type B/2 + Q/2:
- Type B: angled blade strip, straight spring
strip - Type Q: straight blade strip, angled spring
strip - 32
contacts - Length: 55 mm, width: 8.6 mm
DIN 41612 connector - Type B/3 + Q/3:
- Type B: angled blade strip, straight spring
strip - Type Q: angled blade strip, straight spring
strip - 20
contacts - Length: 39 mm, width: 8.6 mm
DIN 41612 connector - Type C + R:
- Type C: angled blade strip, straight spring
strip - Type R: straight blade strip, angled spring strip
- 96 contacts
- Length: 95 mm, width: 11 mm
DIN 41612 connector - Type C/2 + R/2:
- Type C: angled blade strip, straight spring
strip - Type R: straight blade strip, angled spring
strip - 48
contacts - Length: 55 mm, Width: 11 mm
DIN 41612 connector - Type C/3 + R/3:
- Type C: angled blade connector, straight spring
connector - Type R: angled blade connector, straight spring
connector -
30 contacts - Length: 39 mm, width: 11 mm
With all of the above-mentioned types, operating currents of up to 1.6 A can be transmitted at 20 °C.
DIN signal connectors are frequently used in the IT/computing sector to connect plug-in cards to bus boards.
Signal and Power (30 A) in a DIN 41612 Type M
board-to-board connector
The M series offers high-current and signal contacts in a single connector. The straight female connector and the angled male connector can be configured with either 6 signal and 10 coaxial contacts, or 24/8, 42/6, 60/4, and 78/2 contacts. Furthermore, the M series connector is also available in M/2 – 30/2 and M/3 – 12/2. This PCB connector
variant is used, for example, in control systems for filling lines.
variant is used, for example, in control systems for filling lines.
Pitch 5.08 mm – Power (5.6 A)
DIN 41612 Form D, E + DIN 41612 Form F, G + DIN 41612 Form F (flat), G (flat)
Applications requiring the transmission of currents up to 5.6 A can utilize the two-row DIN 41612 Form D and three-row DIN 41612 Form E connectors. Both variants feature a pitch of 5.08 mm. By default, the male connector is angled and the female connector is straight.
Designed for the same application but with a more robust design are the DIN 41612 Type F (three-row) and DIN 41612 Type G (four-row) PCB connectors. For both types of PCB connectors, the female connector is available in a lower-profile version in addition to the standard height. This allows for different PCB spacing configurations.
The DIN 41612 Type F and DIN 41612 Type G are primarily used in railway technology.
Type D (Type D)
:- 32 contacts-
2 rows
Type E (Type E)
:- 48 contacts-
2 rows
Type F (Type F):
- 48 contacts
- 3 rows
Type F flat:
- 48 contacts
- 3 rows
Type G (Type G):
- 64
contacts - 4 rows
Type G flat:
- 64
contacts - 4 rows
Designed for the same application but with a more robust design are the DIN 41612 Type F (three-row) and DIN 41612 Type G (four-row) PCB connectors. For both types of PCB connectors, the female connector is available in a lower-profile version in addition to the standard height. This allows for different PCB spacing configurations.
The DIN 41612 Type F and DIN 41612 Type G are primarily used in railway technology.
Type D (Type D)
:- 32 contacts-
2 rows
Type E (Type E)
:- 48 contacts-
2 rows
Type F (Type F):
- 48 contacts
- 3 rows
Type F flat:
- 48 contacts
- 3 rows
Type G (Type G):
- 64
contacts - 4 rows
Type G flat:
- 64
contacts - 4 rows
Pitch 5.08 mm with Faston connectors 15A
DIN 41612 H11, DIN 41612 H15, mixed type DIN 41612 H7/F24
For a Faston connection, you will need DIN 41612 H11, DIN 41612 H15, or the mixed-type DIN 41612 H7/F24. The H11 and H15 header connectors are available in two different heights. The H7/F25 is an interesting connector strip, featuring 7 Faston connectors (15 A) and 24 power contacts (5.6 A).
VME 64x Backplane Connectors
for Vita Multi-User Bus Systems
A unique feature of the DIN 41612 series is the 5-row VME64x header. With 160 contacts, this header is available in 3 different variants and 2 contact lengths, using press-fit technology. The current VME64 version features a bus width of 64 bits. The DIN 41612 VME64x
spring-loaded connector is used in the aviation, aerospace, and defense industries, among others.
spring-loaded connector is used in the aviation, aerospace, and defense industries, among others.
DIN 41612 Switch Connector
for Daisy Chaining
Many bus systems in automation technology are wired according to the Daisy Chain principle. Connecting signal lines in series across multiple expansion cards is a common practice. However, if individual expansion cards are removed, jumpers must be inserted. This problem can be solved more elegantly using switch connectors. When the daughter card is removed, the contact is automatically short-circuited, eliminating the need to manually insert jumpers.
Overview of Models
DIN 41612 Type B, B/2,
B/3• Standard (X): 4.9•
Lead (Y) + 1.0 mm: 5.9•
Lag (Y) -0.8 mm: 4.1
B/3• Standard (X): 4.9•
Lead (Y) + 1.0 mm: 5.9•
Lag (Y) -0.8 mm: 4.1
DIN 41612 Type C, C/2,
C/3• Standard (X): 4.9•
Lead (Y) + 1.0 mm: 5.9•
Lag (Y) -0.8 mm: 4.1
C/3• Standard (X): 4.9•
Lead (Y) + 1.0 mm: 5.9•
Lag (Y) -0.8 mm: 4.1
DIN 41612 Type R, R/2, R/3
Plug
Side• Standard (X): 4.9•
Lead (Y) +0.8 mm: 5.7 | + 1.0 mm: 5.9•
Lag (Y) -0.4 mm: 4.5 | -0.8 mm: 4.1
Connection
side• Standard (X): 13.0•
Lead (Y) +0.8 mm: 13.8•
Lag (Y) -0.4 mm: 12.6 | -0.8: 12.2
Plug
Side• Standard (X): 4.9•
Lead (Y) +0.8 mm: 5.7 | + 1.0 mm: 5.9•
Lag (Y) -0.4 mm: 4.5 | -0.8 mm: 4.1
Connection
side• Standard (X): 13.0•
Lead (Y) +0.8 mm: 13.8•
Lag (Y) -0.4 mm: 12.6 | -0.8: 12.2
DIN 41612 Type D•
Standard (X): 4.9•
Lead (Y) + 0.8 mm: 5.7
Standard (X): 4.9•
Lead (Y) + 0.8 mm: 5.7
DIN 41612 Type E (2.54 mm pitch)
• Standard (X): 4.9•
Lead (Y) + 0.8 mm: 5.7 (Series a, c, e)
DIN 41612 Form E (5.08 mm pitch)
• Standard (X): 4.9•
Lead (Y) + 0.8 mm: 5.7 (Series a)
• Standard (X): 4.9•
Lead (Y) + 0.8 mm: 5.7 (Series a, c, e)
DIN 41612 Form E (5.08 mm pitch)
• Standard (X): 4.9•
Lead (Y) + 0.8 mm: 5.7 (Series a)
DIN 41612 Type F•
Standard (X): 6.1•
Lead (Y) + 1.3 mm: 7.4
Standard (X): 6.1•
Lead (Y) + 1.3 mm: 7.4
DIN 41612 Type G•
Standard (X): 6.1•
Lead (Y) + 1.3 mm: 7.4
Standard (X): 6.1•
Lead (Y) + 1.3 mm: 7.4
ept Connector Series DIN 41612 / IEC 60603-2
"Connectors that comply with the current IEC 60603-2 standard (formerly DIN 41612) have been in use for over 50 years. And for good reason. Even though technology has evolved and, in the age of IoT and Industry 2.0, applications are becoming smaller yet contain more components, DIN connectors are still just as relevant as they were five decades ago—thanks to their compatibility with the latest board designs, facilitated by their wide variety of form factors, pin counts, and connection technologies.
In addition to soldering and wire-wrap technology, ept also offers the option of obtaining the connector family in the Tcom press® insertion zone developed by ept.
The ept DIN 41612 / IEC 60603-2 product series comprises 12 basic body styles as well as additional complementary versions in 2.54 mm and 5.08 mm pitch. The selection includes both signal connectors with a current-carrying capacity of up to 1.5 A and power connectors with up to 5.6 A or even 15 A per pin. This wide range of variants enables the connector family to be used in an extremely broad range of applications. Standardization ensures compatibility of connectors across different manufacturers."
Wolfgang Schmid, Product Manager, ept GmbH
DIN 41612 / IEC 60603-2 PCB Connectors
In addition to soldering and wire-wrap technology, ept also offers the option of obtaining the connector family in the Tcom press® insertion zone developed by ept.
The ept DIN 41612 / IEC 60603-2 product series comprises 12 basic body styles as well as additional complementary versions in 2.54 mm and 5.08 mm pitch. The selection includes both signal connectors with a current-carrying capacity of up to 1.5 A and power connectors with up to 5.6 A or even 15 A per pin. This wide range of variants enables the connector family to be used in an extremely broad range of applications. Standardization ensures compatibility of connectors across different manufacturers."
Wolfgang Schmid, Product Manager, ept GmbH
DIN 41612 / IEC 60603-2 PCB Connectors
FAQ: Questions and Answers About the DIN 41612 PCB Connector
How can DIN 41612 connectors be assembled?What currents can be transmitted using DIN 41612 connectors?Are DIN 41612 connectors RoHS-compliant?What degree of misalignment do DIN 41216 connectors tolerate during mating?Are there any suitable tools available for working with ept DIN 41216 connectors? Which ones
How can DIN 41612 connectors be assembled?
Depending on the connection method: press-fit or soldering, as well as through-hole reflow technology, Faston connectors, or insulation displacement connectors (IDC)
What currents can be transmitted using DIN 41612 connectors?
The selection includes both signal connectors with a current-carrying capacity of up to 1.5 A and power connectors with up to 5.6 A or even 15 A per pin.
Are DIN 41612 connectors RoHS-compliant?
Yes, all of them.
What degree of misalignment do DIN 41216 connectors tolerate during mating?
DIN connectors have a high misalignment tolerance. When mating male and female connectors, a center misalignment of 1 mm is permitted in both the longitudinal and transverse axes. The angular misalignment tolerance is 4° in the longitudinal direction and 2° in the transverse direction.
Are there any suitable tools available for working with ept DIN 41216 connectors? Which ones
Yes, we provide tools compatible with your connectors.
Customer reviews of DIN-style PCB connectors
We respect our clients’ desire for discretion and therefore do not cite any sources below.
However, we unconditionally guarantee the authenticity of these statements.
However, we unconditionally guarantee the authenticity of these statements.
Our customers need to be able to reliably connect to our equipment even under harsh conditions. That is why we have relied on the high quality standards of ept’s DIN connectors for years.
“The wide selection of press-fit connectors, including the angled versions, really won me over.”
By using the THR method, the wave soldering step can be eliminated, making the process significantly more cost-effective.
