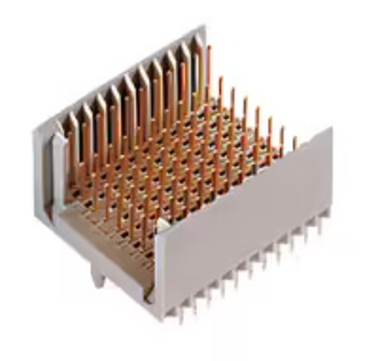

hm 2.0 Hard Metric Connectors IEC 61076-4-101, 2 mm Pitch

Features

Wide selection of types
Modular connectors with a pitch of 2 mm
Five or eight signal rows
Twelve different pin lengths
Customized assembly layout as an option
Available with or without shielding
Supports data transfer rates of up to 3.125 Gbps
Robust design
Accessories such as shrouds and coding keys

Applications

Telecom
Network systems
CompactPCI
Medical technology
Industrial computers (IPC)

hm2.0: Overview

Facts at a glance Applications hm2.0 Products Features Norm IEC 61076-4-101 System Modularity Highspeed Applications FAQ

Female connectors

hm2.0 Female connector, type A Part No. 244-11000-15

110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type A Part No. 244-11000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type A Part No. 244-11300-15

110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type A Part No. 244-11300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type A Part No. 244-11305-15

90 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type A Part No. 244-11305-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	90
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type A Part No. 244-11306-15

90 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type A Part No. 244-11306-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	90
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type A15 Part No. 244-13000-15

60 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type A15 Part No. 244-13000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	60
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type B25 Part No. 244-21000-15

125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type B25 Part No. 244-21000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type B25 Part No. 244-21300-15

125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type B25 Part No. 244-21300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type B22 Part No. 244-22000-15

110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type B22 Part No. 244-22000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type B22 Part No. 244-22300-15

110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type B22 Part No. 244-22300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type B19 Part No. 244-23000-15

95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type B19 Part No. 244-23000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	95
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type B19 Part No. 244-23300-15

95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type B19 Part No. 244-23300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	95
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type C Part No. 244-31000-15

55 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type C Part No. 244-31000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	55
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type C Part No. 244-31300-15

55 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type C Part No. 244-31300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	55
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type L Part No. 244-51000

for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

Power

show more product details

hm2.0 Female connector, type L Part No. 244-51000 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

hm2.0 Female connector, type N Part No. 244-52000

for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

Power

show more product details

hm2.0 Female connector, type N Part No. 244-52000 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

hm2.0 Female connector, type AB25 Part No. 244-61000-15

125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type AB25 Part No. 244-61000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type AB25 Part No. 244-61300-15

125 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type AB25 Part No. 244-61300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type AB22 Part No. 244-62000-15

110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type AB22 Part No. 244-62000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type AB22 Part No. 244-62300-15

110 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type AB22 Part No. 244-62300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type AB19 Part No. 244-63000-15

95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type AB19 Part No. 244-63000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	95
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type AB19 Part No. 244-63300-15

95 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, with shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type AB19 Part No. 244-63300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	95
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type D Part No. 246-11000-15

176 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type D Part No. 246-11000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	176
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type D Part No. 246-11300-15

176 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type D Part No. 246-11300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	176
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type E Part No. 246-21000-15

200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type E Part No. 246-21000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	200
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type E Part No. 246-21300-15

200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type E Part No. 246-21300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	200
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type F Part No. 246-31000-15

88 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type F Part No. 246-31000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	88
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type F Part No. 246-31300-15

88 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type F Part No. 246-31300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	88
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type DE Part No. 246-61000-15

200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type DE Part No. 246-61000-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	200
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Female connector, type DE Part No. 246-61300-15

200 contacts, termination length 2.9 mm, for PCB ≥ 1.44 mm, available with or without shielding, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Female connector, type DE Part No. 246-61300-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	200
Termination Technology	Press-fit
Termination Length	2.9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.6 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

Male connectors

hm2.0 Male connector, type A Part No. 243-11010-15

110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11310-15

154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11321-15

154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11321-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11322-15

154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11322-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11323-15

100 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11323-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	100
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11360-15F

154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11360-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11709-15F

100 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11709-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	100
Termination Technology	Press-fit
Termination Length	16 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11710-15F

154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11710-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	16 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11715-15F

154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11715-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	16 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A Part No. 243-11734-15F

154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A Part No. 243-11734-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A15 Part No. 243-13010-15

60 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A15 Part No. 243-13010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	60
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A15 Part No. 243-13020-15

60 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A15 Part No. 243-13020-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	60
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type A15 Part No. 243-13310-15

84 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type A15 Part No. 243-13310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	84
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B25 Part No. 243-21010-15

125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B25 Part No. 243-21010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B25 Part No. 243-21020-15

125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B25 Part No. 243-21020-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B25 Part No. 243-21310-15

175 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B25 Part No. 243-21310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	175
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B25 Part No. 243-21320-15

175 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B25 Part No. 243-21320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	175
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22310-15

154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22311-15

154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22311-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22312-15

132 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22312-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	132
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22320-15

154 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22351-15F

132 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22351-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	132
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22360-15F

154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22360-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22361-15F

154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22361-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22371-15F

154 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22371-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	16 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B22 Part No. 243-22734-15F

154 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B22 Part No. 243-22734-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	154
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23310-15

95 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	95
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23320-15

133 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	133
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23360-15F

133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23360-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	133
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23361-15F

133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23361-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	133
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23371-15F

133 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23371-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	133
Termination Technology	Press-fit
Termination Length	16 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23700-15F

133 contacts, termination length 16 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23700-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	133
Termination Technology	Press-fit
Termination Length	16 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type B19 Part No. 243-23716-15F

133 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type B19 Part No. 243-23716-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	133
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type C Part No. 243-31010-15

55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type C Part No. 243-31010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	55
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type C Part No. 243-31020-15

55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type C Part No. 243-31020-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	55
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type C Part No. 243-31310-15

77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type C Part No. 243-31310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	77
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type C Part No. 243-31320-15

77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type C Part No. 243-31320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	77
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type M Part No. 243-41010-15

55 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

Power

show more product details

hm2.0 Male connector, type M Part No. 243-41010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	55
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type M Part No. 243-41310-15

77 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

Power

show more product details

hm2.0 Male connector, type M Part No. 243-41310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	77
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type L Part No. 243-51000

for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

Power

show more product details

hm2.0 Male connector, type L Part No. 243-51000 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

hm2.0 Male connector, type N Part No. 243-52000

for PCB ≥ 1.44 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

Power

show more product details

hm2.0 Male connector, type N Part No. 243-52000 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

hm2.0 Male connector, type AB25 Part No. 243-61010-15

125 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB25 Part No. 243-61010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	125
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB25 Part No. 243-61310-15

169 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB25 Part No. 243-61310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	169
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB25 Part No. 243-61320-15

169 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB25 Part No. 243-61320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	169
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB25 Part No. 243-61360-15F

169 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB25 Part No. 243-61360-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	169
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB22 Part No. 243-62010-15

110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB22 Part No. 243-62010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB22 Part No. 243-62310-15

146 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB22 Part No. 243-62310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	146
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB22 Part No. 243-62320-15

146 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB22 Part No. 243-62320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	146
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB22 Part No. 243-62360-15F

146 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB22 Part No. 243-62360-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	146
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB19 Part No. 243-63010-15

95 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB19 Part No. 243-63010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	95
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB19 Part No. 243-63310-15

127 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB19 Part No. 243-63310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	127
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB19 Part No. 243-63320-15

127 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB19 Part No. 243-63320-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	127
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type AB19 Part No. 243-63360-15F

127 contacts, termination length 14.5 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type AB19 Part No. 243-63360-15F - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	127
Termination Technology	Press-fit
Termination Length	14.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type D Part No. 245-11010-15

176 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type D Part No. 245-11010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	176
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type D Part No. 245-11310-15

220 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type D Part No. 245-11310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	220
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type E Part No. 245-21010-15

200 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type E Part No. 245-21010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	200
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type E Part No. 245-21310-15

250 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type E Part No. 245-21310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	250
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type F Part No. 245-31010-15

88 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type F Part No. 245-31010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	88
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type F Part No. 245-31310-15

110 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type F Part No. 245-31310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	110
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type DE Part No. 245-61010-15

200 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type DE Part No. 245-61010-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	200
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

hm2.0 Male connector, type DE Part No. 245-61310-15

244 contacts, termination length 3.7 mm, for PCB > 2.2 mm, tested according to IEC 61076-4-101

Perpendicular

Press-fit

show more product details

hm2.0 Male connector, type DE Part No. 245-61310-15 - Technical data

Basics

Specification	IEC 61076-4-101
Performance Level	2
No. of Contacts	244
Termination Technology	Press-fit
Termination Length	3.7 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0
CTI value IEC 60112	200
Contact Material	Bronze

Mechanical

Pitch	2.0 mm
Mating Force per Pin	Contact: max. 0.75 N, Shielding: max. 1 N
Separating Force per Pin	Contact: min. 0.15 N, Shielding: min. 0.15 N
Durability	> 250 mating cycles

Electrical

Operational Current	1.5 A @ +20°C, 1.0 A @ +70°C
Contact Resistance	max. 20 mΩ
Clearance and Creepage	≥ 0.8 mm
Insulation Resistance	min. 10⁴ MΩ
Test Voltage	750 V r.m.s
Data Transfer Rate	3.125 Gbit/s

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Derating Diagram

Accessories

hm2.0 Shroud C Part No. 243-5511-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud C Part No. 243-5511-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud C Part No. 243-5511-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud C Part No. 243-5511-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud C Part No. 243-5511-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud C Part No. 243-5511-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud C Part No. 243-5511-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud C Part No. 243-5511-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud C Part No. 243-5511-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud C Part No. 243-5511-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud A Part No. 243-5525-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud A Part No. 243-5525-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud A Part No. 243-5525-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud A Part No. 243-5525-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud A Part No. 243-5525-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud A Part No. 243-5525-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud A Part No. 243-5525-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud A Part No. 243-5525-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud A Part No. 243-5525-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud A Part No. 243-5525-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B19 Part No. 243-5619-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B19 Part No. 243-5619-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B19 Part No. 243-5619-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B19 Part No. 243-5619-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B19 Part No. 243-5619-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B19 Part No. 243-5619-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B22 Part No. 243-5622-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B22 Part No. 243-5622-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B22 Part No. 243-5622-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B22 Part No. 243-5622-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B22 Part No. 243-5622-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B22 Part No. 243-5622-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B25 Part No. 243-5625-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B25 Part No. 243-5625-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B25 Part No. 243-5625-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B25 Part No. 243-5625-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud B25 Part No. 243-5625-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud B25 Part No. 243-5625-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-1/1

hm AB Isolierkoerper fuer Uebergabesteckzonen Foto

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB19 Part No. 243-5719-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB19 Part No. 243-5719-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB19 Part No. 243-5719-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB19 Part No. 243-5719-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB19 Part No. 243-5719-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB19 Part No. 243-5719-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB22 Part No. 243-5722-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-2/1

for PCB 4.0 - 4.8 mm, x = 3.7 mm, y = 14.15 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB22 Part No. 243-5722-2/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-3/1

for PCB > 4.8 mm, x = 2.9 mm, y = 13.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB22 Part No. 243-5722-3/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-4/1

for PCB 2.4 - 3.2 mm, x = 4.9 mm, y = 15.35 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB22 Part No. 243-5722-4/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB22 Part No. 243-5722-5/1

for PCB < 2.4 mm, x = 6.3 mm, y = 16.75 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB22 Part No. 243-5722-5/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm2.0 Shroud AB25 Part No. 243-5725-1/1

for PCB 3.2 - 4.0 mm, x = 4.5 mm, y = 14.95 mm, tested according to IEC 61076-4-101

Perpendicular

show more product details

hm2.0 Shroud AB25 Part No. 243-5725-1/1 - Technical data

Basics

Specification	IEC 61076-4-101
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	PBT glass filled, UL 94 V-0

Mechanical

Pitch	2.0 mm

Approval / Compliance

Environment	RoHS compliant

hm 2.0 – Hard Metric Connectors

Features

Applications

hm2.0: Overview

hm2.0 Female connector, type A Part No. 244-11000-15

hm2.0 Female connector, type A Part No. 244-11300-15

hm2.0 Female connector, type A Part No. 244-11305-15

hm2.0 Female connector, type A Part No. 244-11306-15

hm2.0 Female connector, type A15 Part No. 244-13000-15

hm2.0 Female connector, type B25 Part No. 244-21000-15

hm2.0 Female connector, type B25 Part No. 244-21300-15

hm2.0 Female connector, type B22 Part No. 244-22000-15

hm2.0 Female connector, type B22 Part No. 244-22300-15

hm2.0 Female connector, type B19 Part No. 244-23000-15

hm2.0 Female connector, type B19 Part No. 244-23300-15

hm2.0 Female connector, type C Part No. 244-31000-15

hm2.0 Female connector, type C Part No. 244-31300-15

hm2.0 Female connector, type L Part No. 244-51000

hm2.0 Female connector, type N Part No. 244-52000

hm2.0 Female connector, type AB25 Part No. 244-61000-15

hm2.0 Female connector, type AB25 Part No. 244-61300-15

hm2.0 Female connector, type AB22 Part No. 244-62000-15

hm2.0 Female connector, type AB22 Part No. 244-62300-15

hm2.0 Female connector, type AB19 Part No. 244-63000-15

hm2.0 Female connector, type AB19 Part No. 244-63300-15

hm2.0 Female connector, type D Part No. 246-11000-15

hm 2.0 – Hard Metric Connectors
