The Connector System in practice:
The lights in the vehicle can never fail at any time – whether it comes to the high beams, parking lights, fog lights or interior lighting. In addition, a very cost-effective connection technology is often sought.
Our solution - Connector Flexilink Jumper:

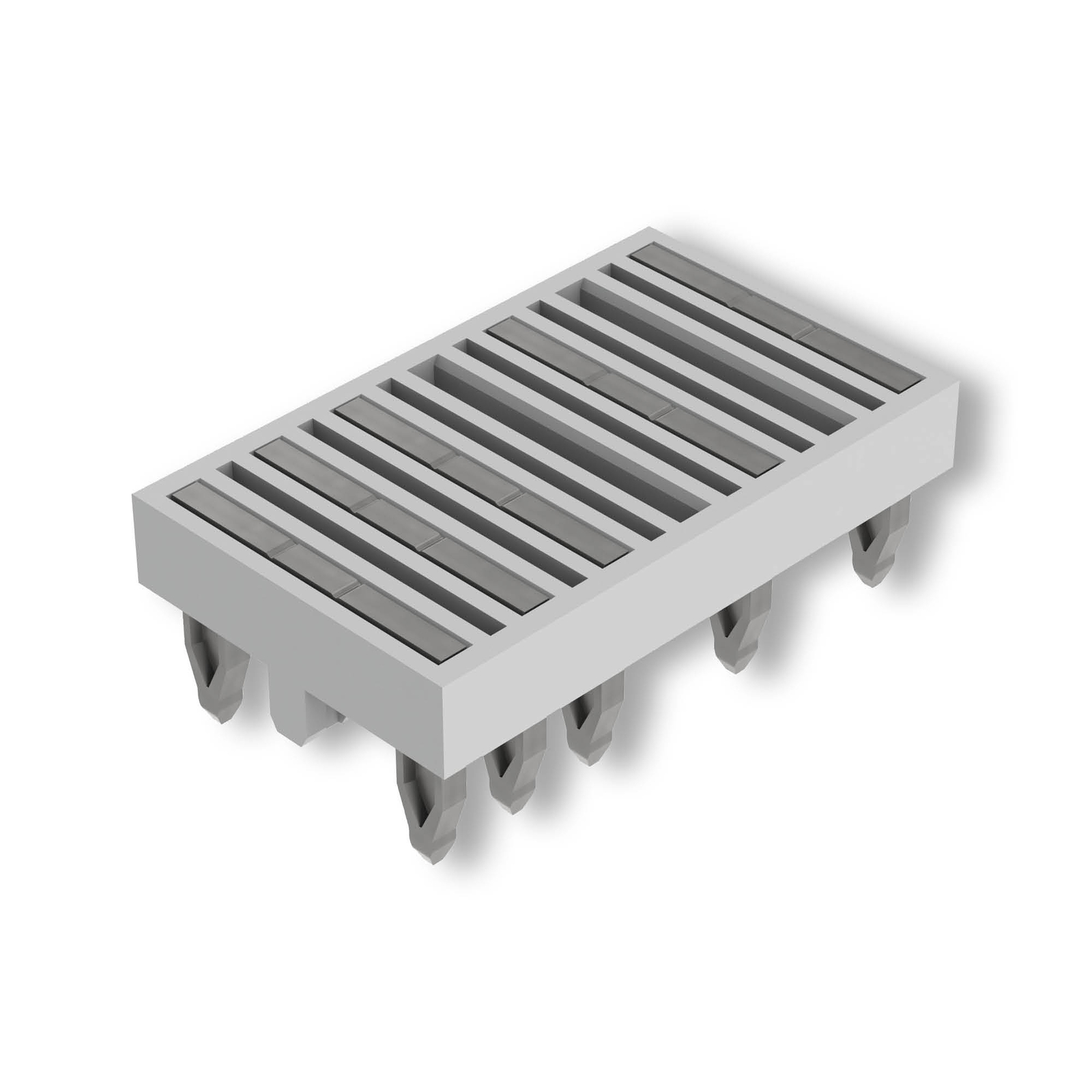

Due to the one-piece connector system, the FlexilinkJumper is an extremely cost-effective solution that excellently withstands high mechanical loads due to the press-fit technology. This connector system has already proven itself many times in the interlinking of LED PCBs.
More informations about FlexilinkJumper:
Flexilink product informations
More informations about FlexilinkJumper:
Flexilink product informations
Overview:
Benefits:
- Cost-effective
- Extremely durable
- Variable pitches
- Customized board-to-board distance as an option
- Saves space, replaces spacers
- High resistance to shock and vibration
- High current rating
Features / Highlights:
- Variable pitch from 2 to 4 mm
- 2–15 contact bridges
- Up to 11 A current rating per pin
- Connection created using just a single part
- Press-fit technology eliminates the soldering process
- Tcom press® press-fit zone
