The Connector System in practice:

On-board heating and air conditioning are standard equipment in cars nowadays. Special attention is paid to cost and space savings.

The Solution - Connector Flexilink b-t-b:

The press-fit technology used in the manufacture of Flexilink_b-t-b and its variable heights between 5 and 25 millimeters enable extremely space-saving PCB connections.

More informations about the Flexilink_b-t-b Connector:

Flexilink_b-t-b product informations

Overview:

Benefits:

Saves space and reduces costs; replaces spacers
Connection created using just a single part
High mechanical load in case of shock and vibration
No soldering process necessary thanks to the press-fit technology
Tcom press® press-fit zone

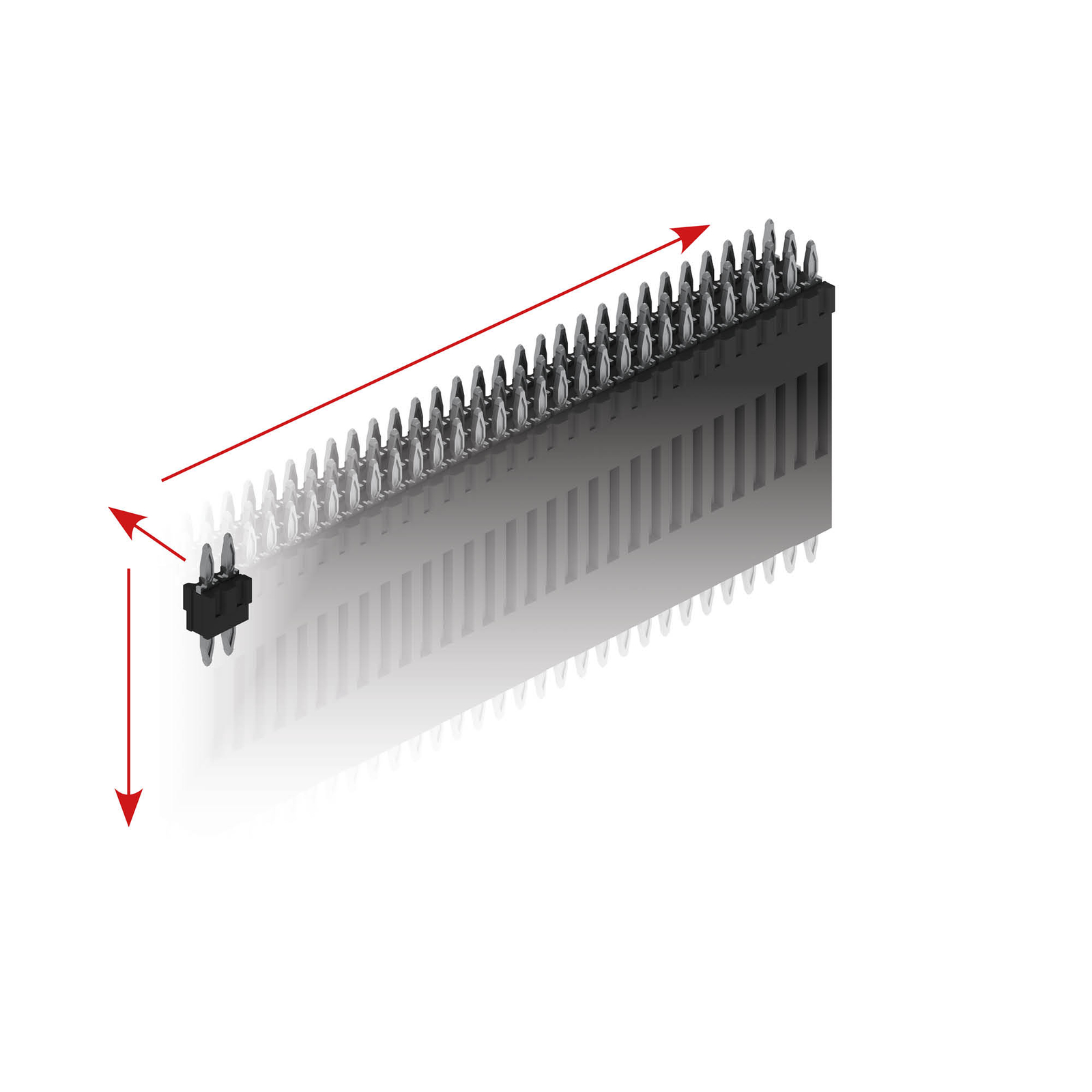

Features / Highlights:

Up to 11 A current rating per pin
2–90 pins
5–25 millimeters in height
1–3 rows

Are you looking for a customized product with press-fit technology?
We will be happy to advise you!
