flexilink PCB connectors
flexilinkjumper is a versatile, non-pluggable PCB connector that stands out for its space-saving design and high current-carrying capacity of 11 amps per pin.
Just like the flexilinkjumper, the flexilinkb-t-b ensures reliable contact under mechanical stress such as shock and vibration thanks to its press-fit technology.
Filter
board-to-board

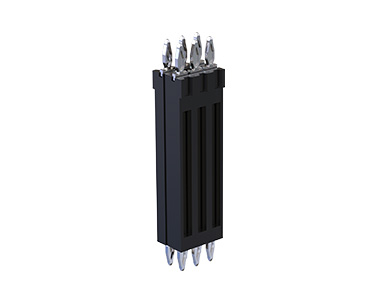

flexilink b-t-b, 5 mm height Part No. 990-52XNN050-110
5 mm height, for a two-stage press-fit process, 1–3 rows of contacts, Saves space and costs; replaces spacers, Part number code: X = number of rows, NN = number of poles per row, For inquiries, please contact our sales department.
Parallel
Press-fit
Power
Rugged

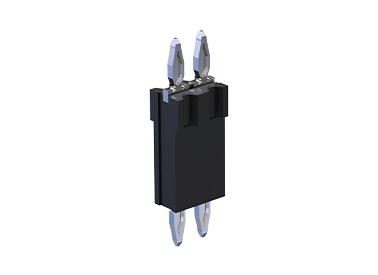

flexilink b-t-b, 10 mm height Part No. 990-52XNN100-110
10 mm height, for a two-stage press-fit process, 1–3 rows of contacts, Saves space and costs; replaces spacers, Part number code: X = number of rows, NN = number of poles per row, For inquiries, please contact our sales department.
Parallel
Press-fit
Power
Rugged

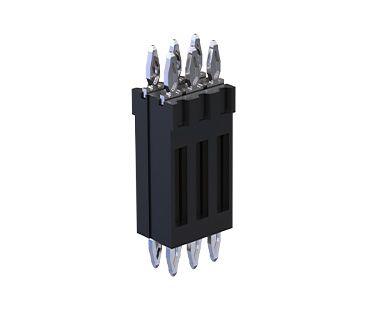

flexilink b-t-b, 15 mm height Part No. 990-52XNN150-110
15 mm height, for a two-stage press-fit process, 1–3 rows of contacts, Saves space and costs; replaces spacers, Part number code: X = number of rows, NN = number of poles per row, For inquiries, please contact our sales department.
Parallel
Press-fit
Power
Rugged

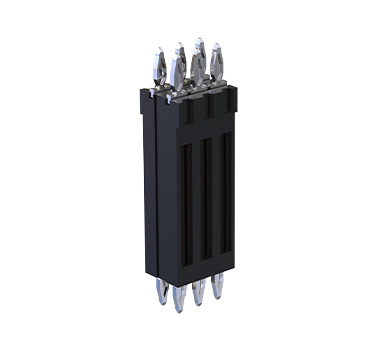

flexilink b-t-b, 20 mm height Part No. 990-52XNN200-110
20 mm height, for a two-stage press-fit process, 1–3 rows of contacts, Saves space and costs; replaces spacers, Part number code: X = number of rows, NN = number of poles per row, For inquiries, please contact our sales department.
Parallel
Press-fit
Power
Rugged
flexilink b-t-b, 25 mm height Part No. 990-52XNN250-110
25 mm height, for a two-stage press-fit process, 1–3 rows of contacts, Saves space and costs; replaces spacers, Part number code: X = number of rows, NN = number of poles per row, For inquiries, please contact our sales department.
Parallel
Press-fit
Power
Rugged
jumper

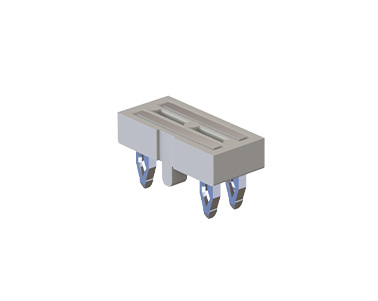

flexilink jumper, 2-contact Part No. 991-500200-11
2 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

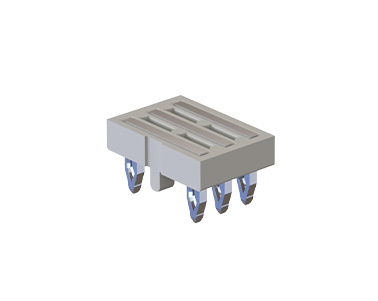

flexilink jumper, 3-contact Part No. 991-500300-11
3 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

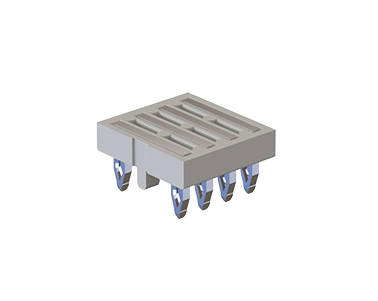

flexilink jumper, 4-contact Part No. 991-500400-11
4 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

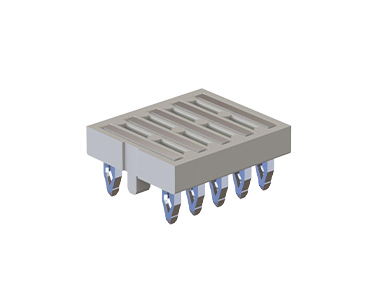

flexilink jumper, 5-pin Part No. 991-500500-11
5 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

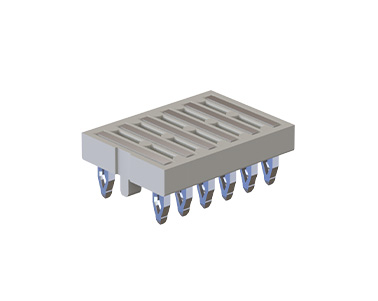

flexilink jumper, 6-pin Part No. 991-500600-11
6 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

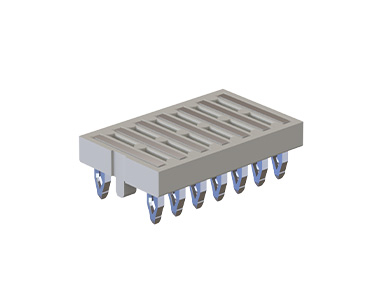

flexilink jumper, 7-pin Part No. 991-500700-11
7 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

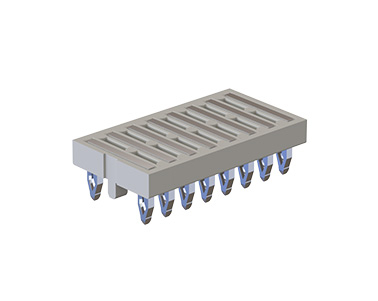

flexilink jumper, 8-pin Part No. 991-500800-11
8 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

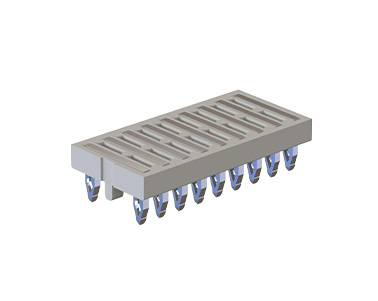

flexilink jumper, 9-pin Part No. 991-500900-11
9 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

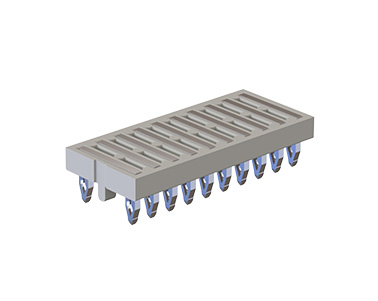

flexilink jumper, 10-pin Part No. 991-501000-11
10 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

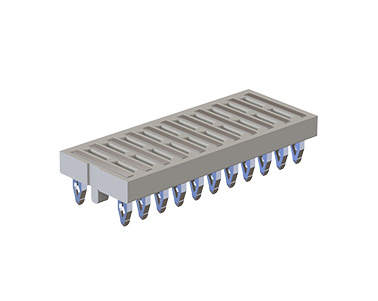

flexilink jumper, 11-pin Part No. 991-501100-11
11 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

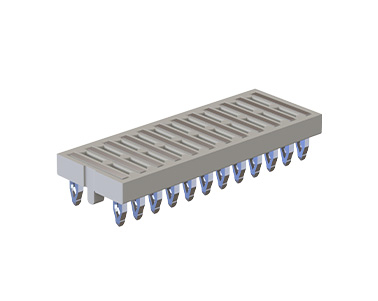

flexilink jumper, 12-pin Part No. 991-501200-11
12 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

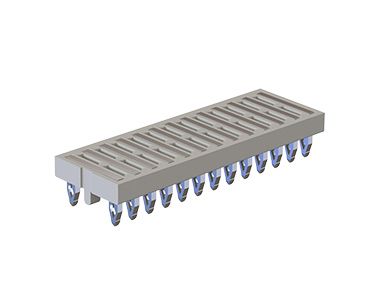

flexilink jumper, 13-pin Part No. 991-501300-11
13 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

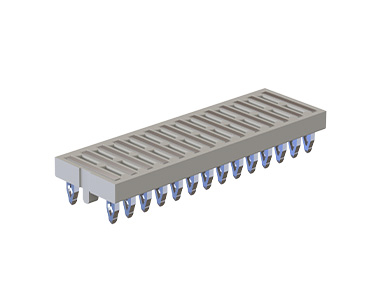

flexilink jumper, 14-pin Part No. 991-501400-11
14 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power

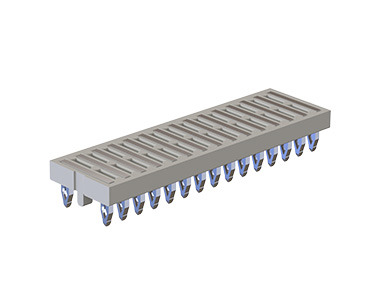

flexilink jumper, 15-pin Part No. 991-501500-11
15 contacts, 11 A current-carrying capacity, compact design, Easy installation without soldering, Can be configured in 2-mm or 4-mm increments
Horizontal
Press-fit
Power
Other number of contacts? Other stacking heights? alternative plating? Individual assembly? Lagging contacts?
flexilink: Overview
PCB connectors using press-fit technology
Our rugged flexilink connector, featuring press-fit technology, is perfect for creating a robust connection in applications with high switching currents.
The flexilink is available in two versions:
- flexilinkjumper for horizontal PCB
connections - flexilinkb-t-b for parallel PCB connections
The flexilink is available in two versions:
- flexilinkjumper for horizontal PCB
connections - flexilinkb-t-b for parallel PCB connections
flexilinkjumper for horizontal PCB connections:
It stands out for its space-saving design combined with high current-carrying capacity. The PCB spacing of 1 millimeter and a footprint of only 3.8 millimeters on the PCB allow for maximum space utilization and versatile use of the connector, for example, for daisy-chaining LED PCBs. The height of the PCB connector is only 2 millimeters.
It stands out for its space-saving design combined with high current-carrying capacity. The PCB spacing of 1 millimeter and a footprint of only 3.8 millimeters on the PCB allow for maximum space utilization and versatile use of the connector, for example, for daisy-chaining LED PCBs. The height of the PCB connector is only 2 millimeters.
flexilinkb-t-b for parallel PCB connections:
The flexilinkb-t-b connector with a 2.54 mm pitch guarantees a high-quality PCB connection using the press-fit method. This double-sided connector is THE solution for high switching currents, as no contact interface limits the current-carrying capacity.
A single component thus establishes both mechanical and electrical contact, eliminating the need for additional spacers and reducing both PCB real estate and overall costs.
The flexilinkb-t-b is adaptable: it is available for PCB spacings ranging from 5 to 25 millimeters, and multiple rows and pin counts can be combined as required.
The flexilinkb-t-b connector with a 2.54 mm pitch guarantees a high-quality PCB connection using the press-fit method. This double-sided connector is THE solution for high switching currents, as no contact interface limits the current-carrying capacity.
A single component thus establishes both mechanical and electrical contact, eliminating the need for additional spacers and reducing both PCB real estate and overall costs.
The flexilinkb-t-b is adaptable: it is available for PCB spacings ranging from 5 to 25 millimeters, and multiple rows and pin counts can be combined as required.
We manufacture custom-fit, custom connectors tailored to your application.
Request a custom connector now
- Other pin counts
- Other stack heights
- Alternative contact coatings
Request a custom connector now
Features of the flexilink jumper PCB connector
flexilinkjumper is a versatile, non-pluggable PCB connector that stands out for its space-saving design combined with a high current-carrying capacity of 11 amps per pin. It features a variable pitch of 2 or 4 millimeters and offers 2 to 15 contact bridges. This allows for PCB spacing tailored to your specific requirements. This makes it particularly well-suited for applications such as LED strips in building, automation, and automotive electronics. It withstands heavy mechanical stress, such as shock and vibration, exceptionally well. No complex soldering process is required—the flexilinkjumper uses press-fit technology to ensure a straightforward connection between two or more PCBs.
Features of the flexilink jumper
- Variable pitch from 2 to 4 millimeters
- 2 to 15 contact bridges Current-carrying
- capacity of up to 11 A per pin
- Space and cost savings; replaces spacers
- —a single component handles the connection
- Withstands high mechanical loads, shock, and vibration
- Eliminates the soldering process through press-fitting Allows
- for individual PCB spacing
- Tcom press® press-fitting zone
Applications
- LEDs in building, automation, and automotive
- technology; drive
- technology; sensor technology
Features of the flexilink B-to-B PCB connector
Just like the flexilinkjumper, the flexilinkb-t-b ensures reliable contact under mechanical stress such as shock and vibration thanks to its press-fit technology. The flexilinkb-t-b can be customized to suit your application: Configure your flexilinkb-t-b in terms of height, number of rows, and contacts. One to three rows of contacts, two to ninety pins, and PCB spacing between 5 and 25 millimeters are possible. Each pin has a current-carrying capacity of up to 11 amps. This makes the flexilinkb-t-b particularly suitable for high-current applications and allows it to perform at its best in standard applications with thick-copper PCBs.
Features B2B
- Up to 11 A current-carrying capacity per pin
- 2 to 90 contacts
- 5 to 25 mm height
- 1 to 3 rows
- Space and cost savings; replaces spacers
- Only one component required for connection
- High mechanical resistance to shock and vibration
- No soldering required – press-fit technology Tcom
- press® press-fit zone
Applications
Machine Tools
Agricultural Technology
Automotive
Intralogistics
Lifting and Crane Technology
Drive Technology
Agricultural Technology
Automotive
Intralogistics
Lifting and Crane Technology
Drive Technology
FAQ: Questions and Answers About flexilink PCB Connectors
Can the flexilink also be pressed into a thicker copper base? Why is there a minimum order quantity for flexilink?
Can the flexilink also be pressed into a thicker copper base?
Yes, the flexilink can be easily pressed into thick-copper circuit boards.
Why is there a minimum order quantity for flexilink?
The minimum order quantities are due to the significant amount of consulting work involved, the complex machinery technology, and the high setup costs for the press.
Testimonials
We respect our clients’ desire for discretion and therefore do not cite any sources below.
However, we unconditionally guarantee the authenticity of these statements.
However, we unconditionally guarantee the authenticity of these statements.
With the help of ept's flexilinks, we were able to solve our space constraints and launch our new product on schedule.
Thanks to ept's gas-tight press-fit zone, we were able to use flexilink to ensure that there would be no contact interruptions, even in encapsulated assemblies.
With flexilink, we can achieve exactly the PCB spacing we need.
In our tests under extreme shock and vibration conditions, we achieved excellent results with flexilink: There were absolutely no contact interruptions at the connection points between the flexilink pins and the PCB through-holes.
With flexilink, we require only one component instead of two to reliably connect printed circuit boards (PCBs).
