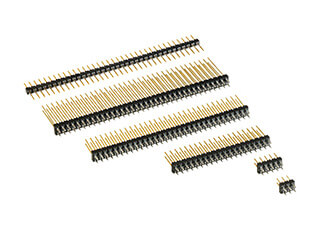

VarPol Pin & Socket Strip

VarPol pin and spring headers from ept offer a wide range of options for connecting printed circuit boards. Single-row or double-row, variable number of contacts, various lead lengths, straight or angled—the choice is yours! In addition, the headers can be seamlessly connected end-to-end.
The proven Tcom press® press-fit zone also allows you to eliminate the soldering process while significantly improving contact reliability.

Features

Wide selection of contact and connection lengths;
choice of quality grades: 50 and 250 mating cycles;
strips can be connected
end-to-end; simple and cost-effective assembly;
press-fit zone in Tcom press®
VarPolfeder, also available in soldered versions
; angled and straight, single-row and double-row

Applications

Board-to-board spacing from 11.45 mm to 35.45 mm;
elimination of the soldering process through press-fit assembly

VarPol: Overview

Key Facts Applications VarPol Products Features Stacking with VarPol Availability FAQ

Straight pin header

VarPol Straight 1-Row Pin Header Part No. 971-nn006-b1

Length of the plug side (Y) = 16.6 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn006-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	23.05 mm – 27.05 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn009-b1

Length of the plug side (Y) = 6.7 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn009-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm – 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn010-b1

Length of the plug side (Y) = 5.2 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn010-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm – 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn011-b1

Length of the plug side (Y) = 8.0 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn011-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	14.45 mm – 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn012-b1

Length of the plug side (Y) = 10.2 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn012-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	16.65 mm – 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn013-b1

Length of the plug side (Y) = 13.0 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn013-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	19.45 mm – 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn018-b1

Length of the plug side (Y) = 17.5 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn018-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	23.95 mm – 27.95 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn019-b1

Length of the plug side (Y) = 25.0 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn019-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	31.45 mm – 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn020-ba

Length of the plug side (Y) = 5.2 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn020-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	11.45 mm – 13 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn021-ba

Length of the plug side (Y) = 8.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn021-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	14.45 mm – 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn022-ba

Length of the plug side (Y) = 10.2 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn022-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	16.65 mm – 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn023-ba

Length of the plug side (Y) = 13.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn023-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	19.45 mm – 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn026-b1

Length of the plug side (Y) = 15.7 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn026-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	22.15 mm – 26.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn029-ba

Length of the plug side (Y) = 25.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn029-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	31.45 mm – 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn039-ba

Length of the plug side (Y) = 6.7 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn039-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	13.95 mm – 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn050-ba

Length of the plug side (Y) = 5.2 mm, Press-fit technology, Connection length: 11 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn050-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	11 mm
Board-to-Board Distance	13.95 mm – 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn051-ba

Length of the plug side (Y) = 8.0 mm, Press-fit technology, Connection length: 11 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn051-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	11 mm
Board-to-Board Distance	14.45 mm – 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 1-Row Pin Header Part No. 971-nn053-ba

Length of the plug side (Y) = 13.0 mm, Press-fit technology, Connection length: 11 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 1-Row Pin Header Part No. 971-nn053-ba - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	11 mm
Board-to-Board Distance	19.45 mm – 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn006-b1

Length of the plug side (Y) = 16.6 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn006-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	23.05 mm – 27.05 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn009-b1

Length of the plug side (Y) = 6.7 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn009-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm – 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn010-b1

Length of the plug side (Y) = 5.2 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn010-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	13.95 mm – 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn011-b1

Length of the plug side (Y) = 8.0 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn011-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	14.45 mm – 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn012-b1

Length of the plug side (Y) = 10.2 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn012-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	16.65 mm – 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn013-b1

Length of the plug side (Y) = 13.0 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn013-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	19.45 mm – 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn018-b1

Length of the plug side (Y) = 17.5 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn018-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	23.95 mm – 27.95 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn019-b1

Length of the plug side (Y) = 25.0 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn019-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	31.45 mm – 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn020-ba

Length of the plug side (Y) = 5.2 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn020-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	11.45 mm – 13 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn021-ba

Length of the plug side (Y) = 8.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn021-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	14.45 mm – 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn022-ba

Length of the plug side (Y) = 10.2 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn022-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	16.65 mm – 20.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn023-ba

Length of the plug side (Y) = 13.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn023-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	19.45 mm – 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn026-b1

Length of the plug side (Y) = 15.7 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn026-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	22.15 mm – 26.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn029-ba

Length of the plug side (Y) = 25.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn029-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	31.45 mm – 35.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn039-ba

Length of the plug side (Y) = 6.7 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn039-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Board-to-Board Distance	13.95 mm – 17.15 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn050-ba

Length of the plug side (Y) = 5.2 mm, Press-fit technology, Connection length: 11 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn050-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	11 mm
Board-to-Board Distance	13.95 mm – 15.65 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn051-ba

Length of the plug side (Y) = 8.0 mm, Press-fit technology, Connection length: 11 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn051-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	11 mm
Board-to-Board Distance	14.45 mm – 18.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn053-ba

Length of the plug side (Y) = 13.0 mm, Press-fit technology, Connection length: 11 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, The "b" in the part number specifies the quality grade of the plug side; the "a" specifies the quality grade of the connector side.

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn053-ba - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	11 mm
Board-to-Board Distance	19.45 mm – 23.45 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn090-9a

Length of the plug side (Y) = 0.0 mm, Press-fit technology, Connector length: 6.5 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, a defines the quality level of the connection side

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn090-9a - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	6.5 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol Straight 2-Row Pin Header Part No. 972-nn091-9a

Length of the plug side (Y) = 0.0 mm, Press-fit technology, Connection length: 9 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row, a defines the quality level of the connection side

Parallel

Press-fit

show more product details

VarPol Straight 2-Row Pin Header Part No. 972-nn091-9a - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	9 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Slats

VarPol 1-row spring terminal strip Part No. 961-40nn2-03

Grade 3, Soldering Techniques, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 1-row spring terminal strip Part No. 961-40nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2–36
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-40nn2-12

Grade 3, Soldering Techniques, Connector length: 12.2 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 1-row spring terminal strip Part No. 961-40nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2–36
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-40nn6-03

Grade 2, Soldering Techniques, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 1-row spring terminal strip Part No. 961-40nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2–36
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-40nn6-12

Grade 2, Soldering Techniques, Connector length: 12.2 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 1-row spring terminal strip Part No. 961-40nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2–36
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn2-03

Grade 3, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn2-07

Grade 3, Press-fit technology, Connector length: 8.05 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn2-07 - Technical data

Basics

Performance Level	3
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm – 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn2-12

Grade 3, Press-fit technology, Connector length: 12.2 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm – 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn2-17

Grade 3, Press-fit technology, Connection length: 17 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn2-17 - Technical data

Basics

Performance Level	3
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	17 mm
Board-to-Board Distance	19.35 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn6-03

Grade 2, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn6-07

Grade 2, Press-fit technology, Connector length: 8.05 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn6-07 - Technical data

Basics

Performance Level	2
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm – 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn6-12

Grade 2, Press-fit technology, Connector length: 12.2 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm – 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row spring terminal strip Part No. 961-60nn6-17

Grade 2, Press-fit technology, Connection length: 17 mm, Number of poles: 2–36 (The number of poles per row corresponds to "nn" in the part number), Single-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 1-row spring terminal strip Part No. 961-60nn6-17 - Technical data

Basics

Performance Level	2
No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	17 mm
Board-to-Board Distance	19.35 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-40nn2-03

Grade 3, Soldering Techniques, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 2-row spring terminal strip Part No. 962-40nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2–108
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-40nn2-12

Grade 3, Soldering Techniques, Connector length: 12.2 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 2-row spring terminal strip Part No. 962-40nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2–108
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-40nn6-03

Grade 2, Soldering Techniques, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 2-row spring terminal strip Part No. 962-40nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2–108
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-40nn6-12

Grade 2, Soldering Techniques, Connector length: 12.2 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Through Hole

show more product details

VarPol 2-row spring terminal strip Part No. 962-40nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2–108
Termination Technology	Soldering Techniques
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn2-03

Grade 3, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn2-03 - Technical data

Basics

Performance Level	3
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn2-07

Grade 3, Press-fit technology, Connector length: 8.05 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn2-07 - Technical data

Basics

Performance Level	3
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm – 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn2-12

Grade 3, Press-fit technology, Connector length: 12.2 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn2-12 - Technical data

Basics

Performance Level	3
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm – 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn2-17

Grade 3, Press-fit technology, Connection length: 17 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn2-17 - Technical data

Basics

Performance Level	3
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	17 mm
Board-to-Board Distance	19.35 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn6-03

Grade 2, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn6-03 - Technical data

Basics

Performance Level	2
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Board-to-Board Distance	11.45 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn6-07

Grade 2, Press-fit technology, Connector length: 8.05 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn6-07 - Technical data

Basics

Performance Level	2
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	8.05 mm
Board-to-Board Distance	11.45 mm – 14.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn6-12

Grade 2, Press-fit technology, Connector length: 12.2 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn6-12 - Technical data

Basics

Performance Level	2
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	12.2 mm
Board-to-Board Distance	14.55 mm – 18.55 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row spring terminal strip Part No. 962-60nn6-17

Grade 2, Press-fit technology, Connection length: 17 mm, Number of poles: 2–108 (The number of poles per row corresponds to the "nn" in the part number), 2-row

Parallel

Perpendicular

Press-fit

show more product details

VarPol 2-row spring terminal strip Part No. 962-60nn6-17 - Technical data

Basics

Performance Level	2
No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	17 mm
Board-to-Board Distance	19.35 mm – 23.35 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

90° pin header

VarPol 1-row pin header Part No. 981-nn010-b1

Length of the plug side (Y) = 2.8 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36, Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Perpendicular

Press-fit

show more product details

VarPol 1-row pin header Part No. 981-nn010-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row pin header Part No. 981-nn011-b1

Length of the plug side (Y) = 5.6 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36, Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Perpendicular

Press-fit

show more product details

VarPol 1-row pin header Part No. 981-nn011-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row pin header Part No. 981-nn012-b1

Length of the plug side (Y) = 7.8 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36, Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Perpendicular

Press-fit

show more product details

VarPol 1-row pin header Part No. 981-nn012-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 1-row pin header Part No. 981-nn013-b1

Length of the plug side (Y) = 10.6 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–36, Single-row, The letter "b" in the part number indicates the quality grade of the connector side.

Perpendicular

Press-fit

show more product details

VarPol 1-row pin header Part No. 981-nn013-b1 - Technical data

Basics

No. of Contacts	2–36
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row pin header Part No. 982-nn010-b1

Length of the plug side (Y) = 2.8 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108, 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Perpendicular

Press-fit

show more product details

VarPol 2-row pin header Part No. 982-nn010-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

VarPol 2-row pin header Part No. 982-nn011-b1

Length of the plug side (Y) = 5.6 mm, Press-fit technology, Connector length: 3.4 mm, Number of poles: 2–108, 2-row, The letter "b" in the part number indicates the quality grade of the connector side.

Perpendicular

Press-fit

show more product details

VarPol 2-row pin header Part No. 982-nn011-b1 - Technical data

Basics

No. of Contacts	2–108
Termination Technology	Press-fit technology
Termination Length	3.4 mm
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0
Contact Material	copper alloy

Mechanical

Pitch	2.54 mm
Mating Force per Pin	max. 0.9 N
Separating Force per Pin	at least 0.6 N

Electrical

Operational Current	max. 1.9 A
Operational Voltage	150 V
Contact Resistance	20 mΩ
Clearance and Creepage	1.2 mm
Insulation Resistance	>10⁶ MΩ

Approval / Compliance

UL file	E130314
Environment	RoHS compliant

Accessories

VarPol Management Team Part No. 962-17nn2/1

for 2 to 108 poles, Guide plates for Varpol spring strips

show more product details

VarPol Management Team Part No. 962-17nn2/1 - Technical data

Basics

No. of Contacts	20
Operating Temperature Range	-55°C to +125°C

Material

Insulator Material	Glass-fiber-reinforced PBT, UL 94 V-0

Mechanical

Pitch	2.54 mm

Approval / Compliance

Environment	RoHS compliant

Other number of contacts? Other stacking heights? alternative plating? Individual assembly? Lagging contacts?

Request individual connectors

» Not the right one for you? Request a customized connector now!

Username:

Thank you very much! We will review your request and get back to you.

If you have any questions, please feel free to contact us by email or phone at any time.

No matching product found - Request this product now:

Fields marked with * are required.

Company *

Salutation

First name *

Name *

Street *

ZIP code *

Location *

Country *

Email *

Phone *

Product Requirements *

You can view our privacy policy here.

Features

VarPol male and female connectors offer a wide range of options: they are available in single- or double-row configurations and with a variable number of pins ranging from 2 to 108. The design of all connectors is also optimized so that they can be seamlessly connected end-to-end. A wide range of lead lengths up to 25 mm allows for the stacking of PCBs with spacing from 11.45 mm to 35.45 mm. The pin headers are also available in a 90° angled version, enabling both parallel and right-angle connections. In addition, with all VarPol products, you can choose between two quality grades, which guarantee a service life of either 50 or 250 mating cycles.

VarPol Anwendung gerade — Application: straight

VarPol Anwendung gewinkelt — Angled application

VarPol Federleiste — VarPol Spring Strip
Details at a Glance

VarPol Stiftleiste — VarPol Pin Header
Details at a Glance

Another advantage is the simple and cost-effective installation using the press-fit method. The pin and spring headers are equipped with the proven Tcom press® press-fit zone, allowing them to be pressed in without soldering. The press-fit process creates a gas-tight and vibration-resistant connection, making VarPol products the ideal PCB connectors for reliable mechanical and electrical connections, even in harsh environments. ept provides the matching assembly tools for the pin and spring headers, making the press-fit process highly simple and reliable. For wider PCB spacing, additional guide bodies assist with contact alignment and deliver optimal stabilization for the press-fit pin headers.

Stacking with VarPol

VarPol press-fit pin and socket headers offer a highly flexible way to connect printed circuit boards in parallel:

PCB spacing from 11.45 mm to 35.45 mm thanks to various connector lengths for single-row or
double-row pin headers
; number of contacts can be selected as needed (open-ended, as the connectors can be arranged in a row without losing the pitch)
Transfer zone available
; header connectors available in solder or press-fit technology

The connection between the connector and the printed circuit board via press-fit technology enables an extremely robust and durable connection. High-quality press-fit connections, such as those created with the Tcom press® from ept, have been proven to offer better contact reliability than soldered connections. The cold weld formed between the contact and the PCB hole during the press-fit process is mechanically very stable and electrically superior. Processing with the appropriate tools offered by ept is remarkably simple and reliable.

Furthermore, stacking multiple PCBs on top of one another is possible by using header strips with corresponding connection contacts. PCB spacing ranging from 11.45 mm to 19.35 mm can be achieved in this manner. A guide body mounted on the underside of the top PCB ensures stable contact guidance and prevents misinsertion.

In addition to parallel board-to-board configurations, angled pin headers enable right-angle connections with the same versatility and reliability.

System: VarPol female connector / VarPol male connector

972-nn00-yx | 5.2/6.5 mm
Difference: max. 1.55

972-nn010-yx | 5.2 mm
Difference: max. 1.7

972-nn009-yx | 6.7 mm
Difference: max. 3.2
(preferably use 972-nn010-yx)

972-nn011-yx | 8.0 mm
Difference: max. 4.0

972-nn012-yx | 10.2 mm
Difference: max. 4.0

972-nn013-yx | 13.0 mm
Difference: max. 4.0

972-nn018-yx | 17.5 mm
Difference: max. 4.0

972-nn019-yx | 25.0 mm
Difference: max. 4.0

System: VarPol terminal strip / VarPol terminal strip with long terminals

962-6xxxx-07| 7.7 mm
Difference: max. 2.95

962-6xxxx-12 | 12.2 mm
Difference: max. 1.7
PC/104

962-6xxxx-17 | 17.0 mm
Difference: max. 4.0

Availability

"ept guarantees its customers the long-term availability of VarPol pin and spring headers with a 2.54 mm pitch. Hardware developers across all industries have relied on these headers for years to reliably and flexibly connect printed circuit boards or to connect cables to the board."

FAQ: Questions and Answers About VarPol Pin and Socket Strips

Can the VarPol pin and spring bars be used to achieve custom PCB spacing? Are guide blocks available for the VarPol pin and spring strips?Can VarPol pin and header strips from ept be connected in series?

Can the VarPol pin and spring bars be used to achieve custom PCB spacing?

The VarPol pin and header strip allows for PCB spacing ranging from 11.45 mm to 35.45 mm.

Are guide blocks available for the VarPol pin and spring strips?

VarPol guide bodies are available as accessories for pole counts ranging from 2 to 104.

Can VarPol pin and header strips from ept be connected in series?

ept ensures seamless alignment with VarPol moldings.
