How can circuit boards be connected to one another using One27 SMT connectors?
The different types included in the product family of One27 connectors make it possible to connect PCBs in parallel, horizontally, or perpendicularly and to connect ribbon cables to the circuit board.
What PCB distances are possible using One27 connectors?

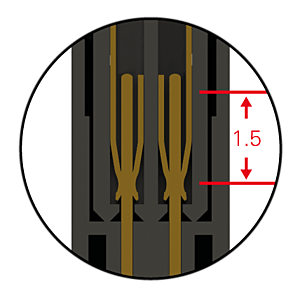

It is possible to implement board-to-board distances ranging from 8 mm to 13.8 mm using One27 PCB connectors, with a secure mating tolerance of 1.5 mm. This means that male and female connectors can be separated by up to 1.5 mm and we still guarantee an optimal, reliable contact. Furthermore, the heights of the low-profile One27 and the mid-profile One27 can be combined with one another in four ways, enabling you to implement different PCB distances.
Why is the connection between the male and female connectors for the One27 connectors particularly reliable?

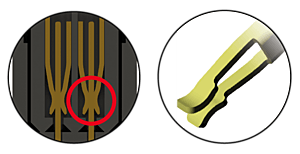

The connection produced by One27 connectors is established by means of a double-sided female contact that envelops the contact pin of the male connector. Even if the connection is offset, the contact on one side of the contact pin at the very least is still reliable. Moreover, the connector is plugged on the smooth, rolled surface of the female contact. Wear and tear of the contact surfaces and shavings become a thing of the past when using the One27 connectors.
Are One27 SMT PCB connectors from ept compatible with other connectors available on the market?
The One27 connector system is fully compatible with the connectors from other manufacturers. The compatibility of the One27 connectors has been confirmed in test reports, which you can request by e-mailing us at email@example.com.
What applications are suited for using One27 PCB connectors?
One27 SMT connectors are suited for all applications in which PCBs require a robust connection with minimal space availability. Your options for arranging the PCBs and selecting the connection types remain very flexible thanks to the different orientations, heights, and termination technologies available with the One27 connectors. It remains entirely in your hands whether you need to stack the PCBs in parallel with varying distances, horizontally next to one another, at a right angle, or by ribbon cable.
What currents are possible using One27 connectors?
A 50-pin One27 connector carries up to 1.4 A at 20°C ambient temperature. Request more detailed information and test reports by emailing us at firstname.lastname@example.org.
What are the offset tolerances for One27 PCB connectors when being plugged?
One27 connectors feature high offset tolerances. The permissible center offset tolerance when connecting a male to a female is 0.7 mm along both the longitudinal and the transversal axis. The tolerance for angular inclination is 4° longitudinally and 2° transversally.
Is the female One27 IDC also available without ribbon cable?
Yes. ept also offers the female IDC from the One27 product family without cables, which means you can assemble the cable yourself and determine your specific cable length. Refer to the Installation Instructions for more information.
ept also offers customized cable assembly of the female One27 IDC to suit your every need.
Does ept also offer the female One27 IDC with cable?
Yes. ept offers the female One27 IDC based on insulation displacement technology with cable assembly. You can determine the orientation of connectors, number of contacts, and cable length. What’s more, you can choose between three different cable types.
How can One27 SMT PCB connectors be processed?
The One27 connector system is processed using surface-mount technology (SMT) – in other words, it is soldered directly onto the circuit boards. The connectors are shipped in tape-and-reel packaging, allowing for fully automatic pick-and-place processing. There are positioning pins on the underside of the One27 connectors, which guarantee exact positioning on the circuit board. Further, ept guarantees that the deviation from coplanarity is only 0.1 mm (max.) to ensure proper soldering when processing.
Is it possible to use automatic optical inspection (AOI) for the soldering of the One27 SMT connectors on the PCBs?
Yes. The One27 connectors’ contact design has been optimized for automatic optical inspection following soldering. The contacts of the angled One27 PCB connectors are arranged so that it is possible to perform an automatic optical inspection from one side.
Are the One27 connectors also shipped in tape-and-reel packaging?
Yes, One27 SMT connectors are shipped in tape-and-reel packaging, allowing for fully automatic pick-and-place processing. Other packaging types are available from ept on request. The female One27 IDC is normally shipped in tray packaging.
Are One27 PCB connectors UL-recognized components?
Yes, One27 connectors from ept are UL-recognized components in the U.S. and in Canada.
Are the ept PCB connectors RoHS compliant?
RoHS (Restriction of Hazardous Substances) is a directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
We confirm that One27 connectors from ept are RoHS certified and compliant with the RoHS directive (2011/65/EU). You can find more detailed information at RoHS & REACH.
