How to Protect Components

The right method, the right connector

How to Protect Components: The Right Process, the Right Connector

The electronics industry is undergoing a transformation: whether in the automotive sector, solar and wind power, or industrial automation, electrification is taking place across all sectors. However, with the steady increase in connectivity, the number of electronic failures has also risen in recent years—by as much as 29%, according to the Center for Automotive Research. Depending on the expected environmental influences, component protection for electronic components is therefore necessary. This ensures that the electronics are reliably protected—but to achieve this, users also need a connection solution that is compatible with potting compounds.

Growing Demand for Component Protection Methods

Various methods protect electronic components from shock, vibration, moisture, dirt, high temperatures, prolonged temperature fluctuations, and the resulting damage. Component protection can therefore significantly contribute to improving the service life, functional safety, and reliability of end products.

For this reason, component protection methods are already regularly used in many applications: e-mobility, industrial automation, rail applications, medical technology, wind power and solar technology, communications electronics, agriculture, and household appliances—electronics are used almost everywhere today. A growing challenge in this context is the increasing trend toward miniaturization. Electronics are becoming smaller and smaller and require different protective measures to increase creepage distances and eliminate clearance distances.

Depending on the stress and operating conditions of the components, one therefore chooses between different methods: potting, conformal coating, and hot-melt molding are the most popular among them.

Do you have any specific questions?

mail
We are prepared to assist with any technical inquiries you may have. Please contact us.

Go to the contact form »

Component protection method: Potting

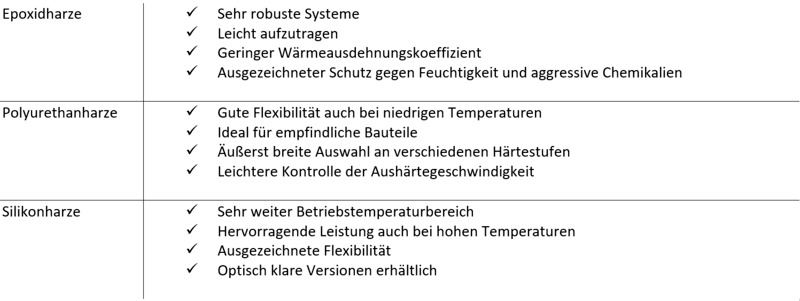

Tabelle Potting Vergussstoffe
Table 1: The most common potting compounds and their properties
One- and two-component potting compounds are used very frequently. With two-component potting compounds, resin and hardener are mixed in a specific ratio using appropriate machinery and, as standard, poured into the cavity via a static mixing tube. Thus, this cold potting is a non-molding process and requires a housing into which the potting compound is poured.
Potting offers many advantages: Not only does it provide excellent electrical insulation, high heat dissipation, and vibration and shock reduction, but it also offers resistance to chemicals, moisture, thermal shock, and cycling, protects the electronics from dust and moisture, and possesses flame-retardant properties.

Depending on specific requirements, epoxy, polyurethane, and silicone resins are typically used. They all differ in terms of their properties (Table 1).

In addition to the materials mentioned above, there are also special encapsulants and casting resins. However, these are used only under extreme conditions. For example, in accordance with ATEX requirements, they protect against explosions by preventing the chemical reaction between an ignition source, a flammable substance, and oxygen. Furthermore, they provide electrical insulation against high voltage (up to 30 kV/mm), protect against overheating caused by localized heat generation, and, with an IP68 rating, offer protection against dust and prolonged submersion.

Potting offers users a wide range of possibilities. Typical products where this process is used include battery packs, power and control electronics, chargers, explosion-proof electronics, sensors, monitors, and displays.

Component protection method: Conformal coating

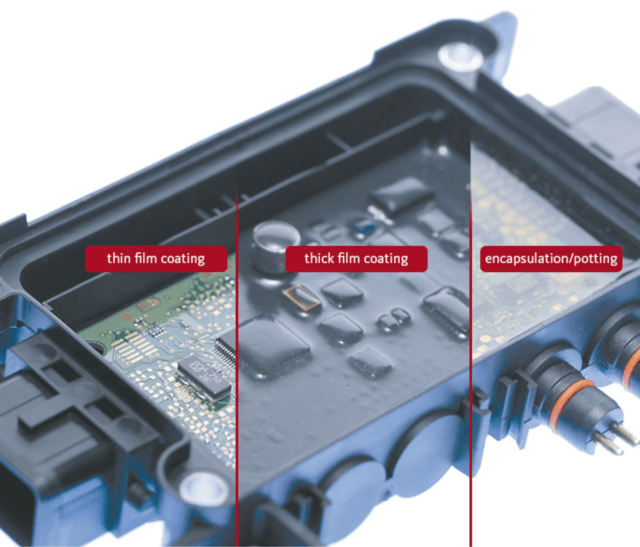

WW Trilogie Text 2022 new
Fig. 1: Comparison of thin-film coating (left), thick-film coating (center), and potting (right) Source: Werner Wirth
With conformal coating, printed circuit boards are coated either completely or selectively. In the case of selective coating, only the necessary areas of the printed circuit board are covered with a protective layer. Generally, a distinction is made between two types of coating: Thin-film coating, with its fast curing time and optimized viscosity, ensures high cost-effectiveness in manufacturing processes. In contrast, thick-film coating provides particularly high edge and surface protection, safeguarding electronic assemblies especially against extreme humidity. In both cases, conformal coatings build up layer thicknesses of only 30–2000 µm after drying. This means the electronic assembly can still be installed in tight spaces.

 Due to the varying viscosities of the protective coatings and their resulting differences in flow behavior, the DAM & FILL principle is frequently applied to assembled electronic assemblies. Here, a thixotropic protective coating is used to form a “dam” around components that must not be encapsulated, such as connectors. The remaining components are then coated with a low-viscosity conformal coating (“Fill”).Various polymer materials

are used for conformal coating. Users can choose between silicone-based and UV-curing products, among others. The former are ideally suited for harsh operating conditions, such as in aerospace or offshore applications, due to their wide temperature range from -40°C to +200°C. The latter consist of acrylates and polyurethanes or hybrids of both materials. They are characterized primarily by the fact that they cure very quickly through UV initiation and offer excellent thermal shock resistance.

The applications for conformal coatings are diverse and range from the automotive sector to rail technology, sensor technology, industrial electronics, medical technology, as well as the aforementioned offshore wind power and aerospace technology.

Component protection process: Hot-melt molding

Ausschnitt Draeger
Fig. 2: Hot-melt molding, illustrated using a firefighter's helmet as an example. Visible in the center: connectors that were recessed using the dam-and-fill method. Source: Werner Wirth
Hot-melt molding is a specialized form of encapsulation. In this process, the assembly is coated with a material in a single step, creating a housing structure while simultaneously protecting the assembly. The electronics remain undamaged because the low-viscosity thermoplastics have a low processing temperature and are processed at significantly lower injection pressure than in standard plastic injection molding. This component protection is achieved while allowing the thermoplastics to cure quickly, making the process cost-effective.

Low-pressure injection molding thus enables even sensitive components such as contacts, sensors, printed circuit boards, and coils to be environmentally friendly encapsulated, bonded, or sealed to IP68 standards, thereby protecting them even from the most severe conditions.

One industry heavily affected by external influences is agriculture, for example. Here, machinery is subjected to varying weather conditions on a daily basis. Hot-melt molding is perfectly suited for protecting their electronics: It provides reliable, long-lasting protection against moisture, temperature fluctuations, corrosion, and vibrations.

Conclusion

icon info r

Potting, conformal coating, or hot-melt molding: The most suitable component protection method always depends on the specific application of the electronics and the associated requirements. There is no one-size-fits-all solution.

Connector Issues

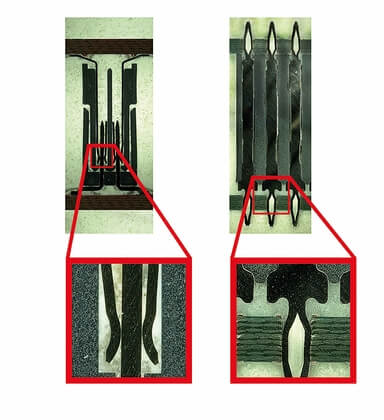

Schliffbild Verguss
Fig. 3: Cross-sectional view of a two-piece connector vs. a one-piece flexilinkb-t-b connector Source: ept GmbH
Extreme temperatures, dirt, and moisture, as well as chemical or mechanical stress: With the right component protection method, electronics are shielded from virtually any external influence. However, one aspect must be taken into account: Encapsulation is only possible if the functionality of the installed components is not compromised by the materials used. This also requires a potting-compatible connection solution—ruling out the use of standard PCB connectors. The reason for this is the typically two-part spring-blade contact technology, where the potting compound can penetrate the vulnerable mating area and thus interfere with the contact.

With conventional connectors, the contact area must therefore be sealed using a dam-and-fill method prior to potting to avoid any risk of interference from the potting compound (Fig. 2). The concern here is that the potting compound in the contact area could, on the one hand, impair the contact points and thus interrupt signal transmission. On the other hand, it would inhibit the relaxation properties of the spring.

To enable potting while still ensuring the required reliability, it is recommended to choose a one-piece connection solution—that is, a connector that does not require a conventional mating area. With such a one-piece connector, it is impossible for the potting compound to penetrate the contact area.

Press-fit technology as the connection method of choice

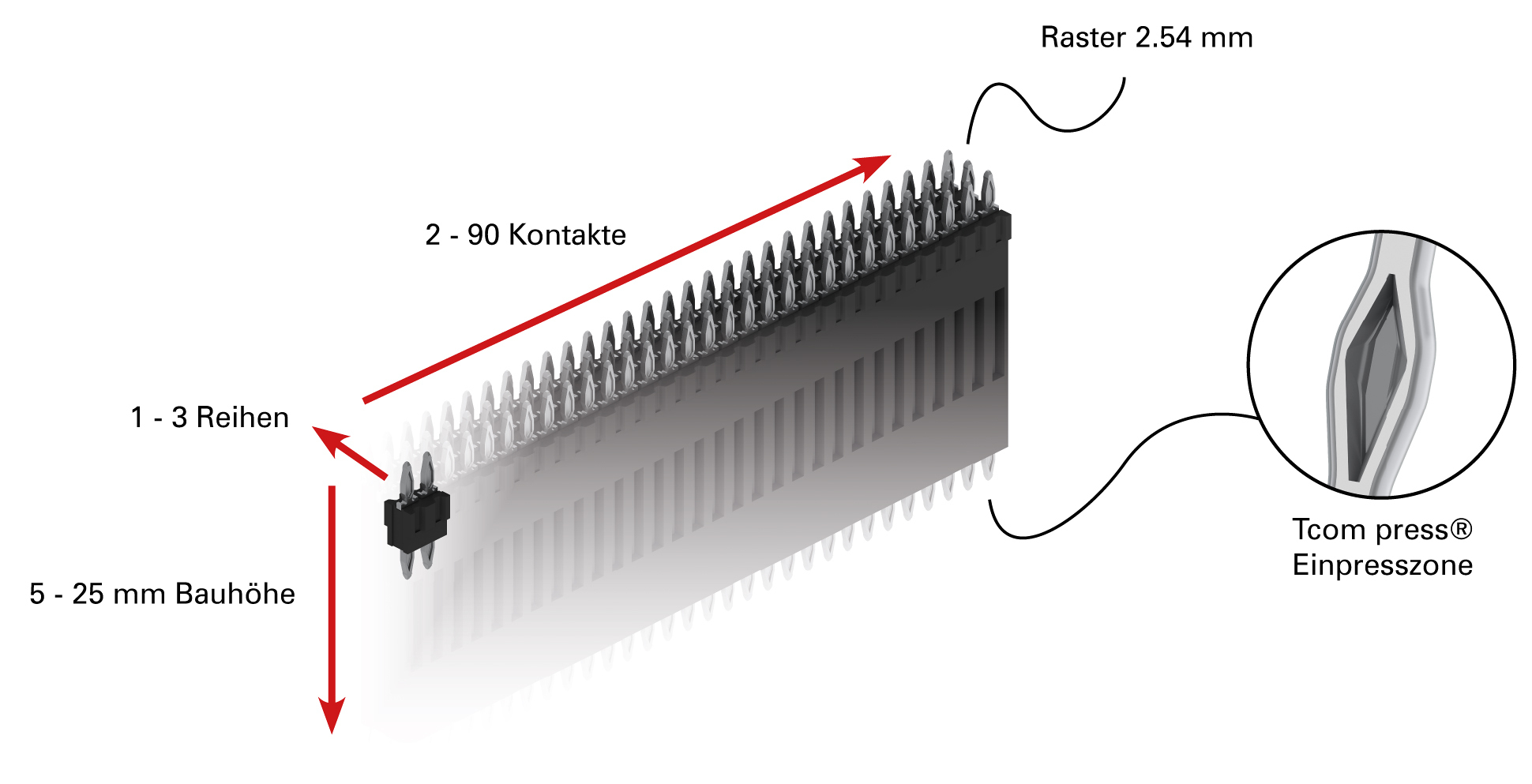

UEbersichtsbild flexilink btb
Fig. 4: The flexilinkb-t-b PCB connector with the ept Tcom press® press-fit zone Source: ept GmbH
One-piece connectors therefore provide the necessary IP rating for these materials, enabling encapsulation—and thus a durable and robust connection solution. However, the choice of connection technology also plays an important role here. With the help of crimping zones on both sides, the connection area becomes gas-tight due to cold welding between the copper sleeve and the crimping zone, thereby forming a pottable connection between two printed circuit boards that has already proven itself billions of times in the field.

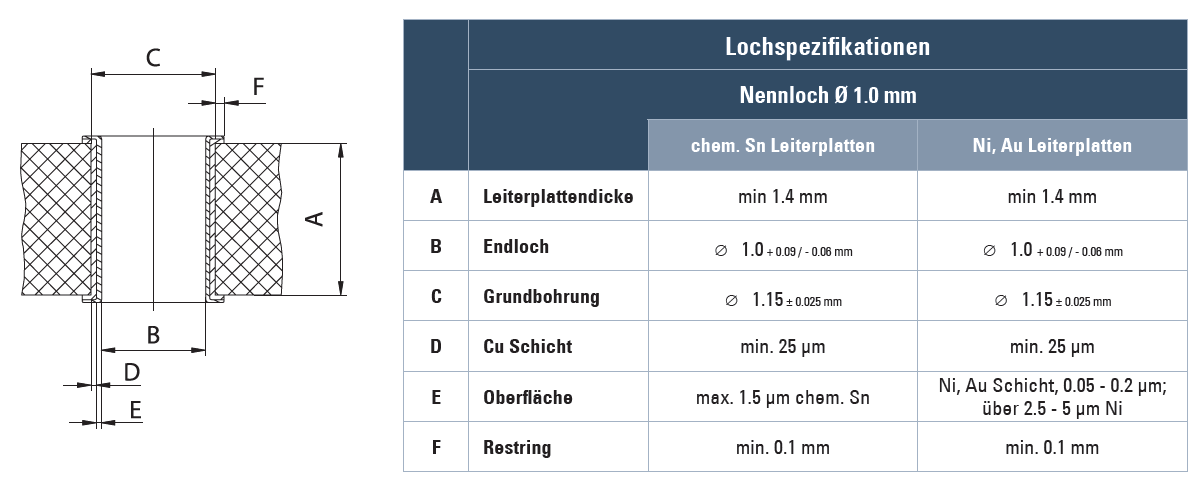

Lochspezifikation Flexilink
Fig. 5: Hole specifications for the ept press-fit zone Source: ept GmbH
However, to ensure this gas-tight connection, it is essential to implement the through-hole plating in accordance with the ept specification:


By eliminating the plug-in section, the connector, when combined with the press-fit technique, can withstand shock loads of up to 200 g. Furthermore, material movement caused by large temperature fluctuations and the effects of corrosive gases do not compromise the connection. Press-fit technology increases reliability many times over compared to soldering technology, as neither cold joints nor broken solder joints can occur. Furthermore, this eliminates the need for complex selective soldering work, expensive cable solutions, and spacers, allowing developers not only to save space on the PCB but also to reduce costs by up to 50 percent.

A single component establishes both a mechanical and an electrical connection. Especially for modular assemblies with configurable functions or varying performance levels, the press-fit process can be excellently integrated at the end of the assembly process. Here, different modules can be mounted on base PCBs as desired. This allows a wide variety of products to be manufactured in a single, rapid step. Since final encapsulation of the assembly is also possible, the electrical and mechanical connection remains reliably intact.

Molding allows users to provide maximum protection for their electronic assemblies against aggressive environmental influences. However, anyone considering component protection for their application must also take into account the selection of a suitable connector in combination with the appropriate connection technology. One-piece, press-fit, and molded—with this combination, electronic assemblies are equipped to withstand (almost) all external influences.

Learn more about press-fit technology in our free white paper

Icon Whitepaper
Would you like to learn more about press-fit technology?
For a detailed overview of the fundamentals of press-fit technology, we’d be happy to send you our free white paper: Request

white paper »

Matching press-fit connector

Flexilink Produkt Kurzbeschreibung 515x3006
flexilink b-t-b

Our flexilink b-t-b connector meets these exact requirements for robustness and reliability and is also available in the proven press-fit technology. For
more information about the product, click here:


Flexilink »
